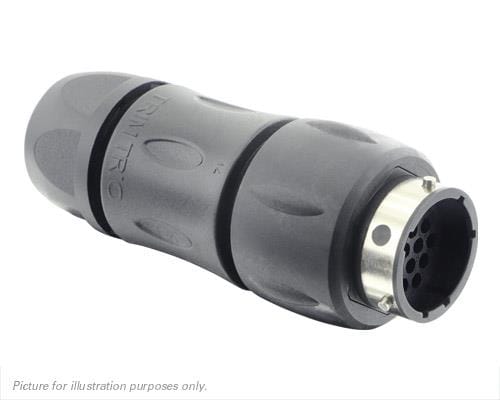

Eaton Souriau-Sunbank UTGX1JC1419P ປະຕູຕ່ອງ Receptacles In line receptacle, ມີກະແຈບເຄື່ອງປົກກັນສາຍສະບັບ backshell, ສໍາລັບ 19 ຕຳແໜ່ງຊາຍ male contacts, IP68/69K

Color: Black

Diameter: 22.31 mm

IP Rating: IP65, IP67, IP69K

Shell Size: 14

Wire Gauge: 20 AWG

Shell Style: In-Line

Mating Style: Bayonet

REACH - SVHC: Details

Mating Cycles: 500 Cycles

Contact Gender: Without Pin Contacts

Current Rating: 4.5 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Free Hanging

Shell Material: Polyamide (PA)

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Brass

Termination Style: Crimp

Insert Arrangement: 19

Flammability Rating: UL 94 V-0

Number of Positions: 19 Position
