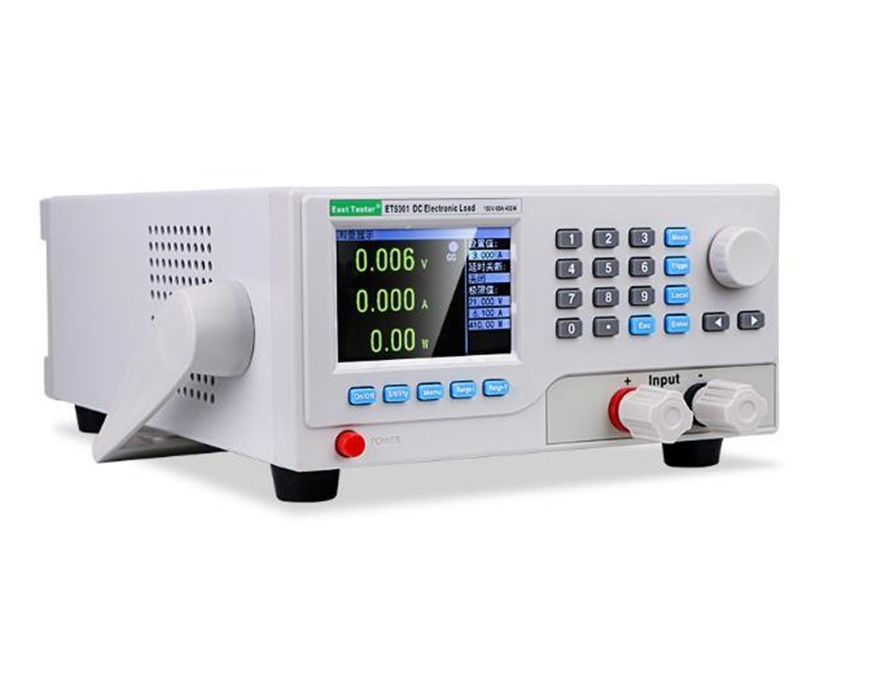

EAST TESTER ET5303 Programmable Electronic Load (400W; 0-500V; 0-30A)
Specifications
- Rated input:
+ Power: 400W
+ Input voltage: 0-500V
+ Input current: 0-30A
- Range:
+ CV mode: 0.1~19.999V,0.1~500.00V
+ CC mode: 0~3.000A; 0-30.00A
+ CR mode: 0.05Ω~1 kΩ，1 kΩ~4.5kΩ
+ CP mode: 0~400W
- Tran Test
+ Mode: CC，CV
+ T1&T2: 50ms~60s
- Battery Test:
+ Discharge mode: CC，CR
+ Maximumdischarge capacity: 9999Ah
+ Resolution: 1mA，10mA，10mΩ，100mΩ
- Range of measurement:
+ Voltageread-back value: 0~19.999V,0 ~500.00V
+ Currentread-back value: 0~3.000A; 0-30.00A
+ Powerread-back value: 400W
- Scope of protection:
+ Over Voltage Protection(OV): ＞21V OR ＞510V over voltage protection
+ Over Current Protection(OC): ＞3.1 or ＞31A over current protection
+ Over Power Protection(OP):410W
+ Over Temperature Protection: 85℃
