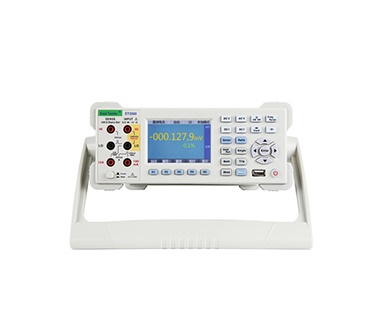

EAST TESTER ET1260A Benchtop Digital Multimeter (6½ digit)
Display3.5-inch color screen (resolution 320*480)
According digits: 6 1/2
Maximum measurement speed: 7 times / sec
Signal terminal: front-end/back-end
DC voltage: 0 mV~1000 V; 100nV
DC current: 0 uA ~ 12 A; 10 pA
AC voltage: 1 mV~750 V; 100nV
AC current: 1 uA ~ 12 A; 100 pA
Resistance: 0 Ω ~ 1 GΩ; 10uΩ
Capacitance: 0 nF ~ 100 mF; 1 pF
Frequence/period: 3 Hz ~ 1 MHz; 1 uHz
Interface: RS-232、IEEE 488、LAN、USB Device、USB Host、Trig IN/OUT
General technical specifications:
Power voltage: 220V.AC plus or minus 10%, 45~66Hz, or 2110V.AC plus or minus 10%, 45~440Hz
Display: 3.5-inch TFT LCD, resolution 48x320, color 16M
Temperature range: - 5 ℃ ~ + 45 ℃
Humidity range: 5%~85% relative humidity
Interface: RS232, USBHost, USBDevice, LAN, GPIB (only 3260, 3250 support)
Size and weight: 265mm * 102mm * 335mm (width * height * depth), weight: 2.7kg
Standard accessories:
Model 30A51 has one Three-core power cord
32A52 type three - core stylus 1 pair
32A52 backup power fuse 2
Optional accessories:
GPIB cable (32 p01)
Cabinet installation kit (32P02)
PT100 temperature probe (32P03)
RS232 serial port (32P04)
USB data cable (32P05)
