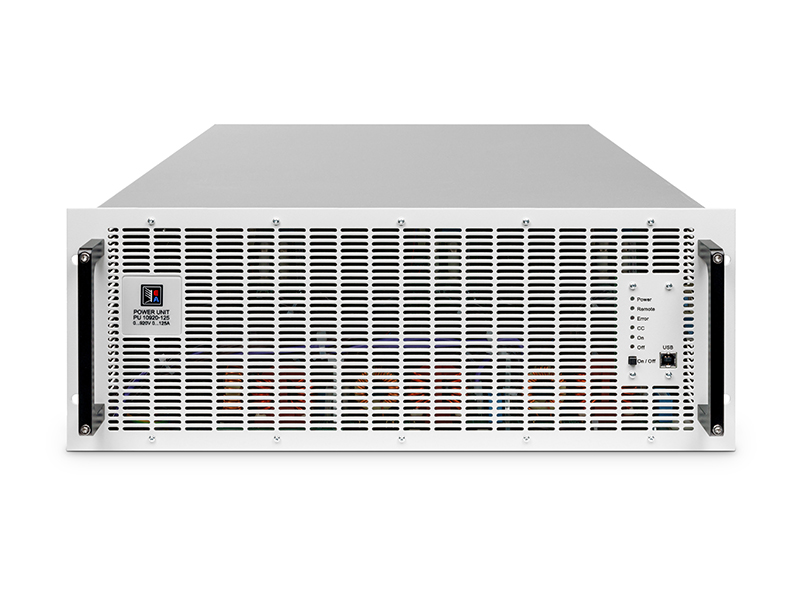

EA Elektro-Automatik PUB 10360-240 Programmable Bidirectional DC Power Supply (360V; 240A; 30KW; Water Cooling)
ຜູ້ຜະລິດ: EA Elektro-Automatik Model: PUB 10360-240 P/N: 1543004 - ຕິດຕໍ່ພົວພັນ
DC output:
Voltage range : 0 - 360 V
Ripple in CV (rms) : ≤55 mV (BWL 300 kHz)
Ripple in CV (pp) : ≤320 mV (BWL 20 MHz)
U Min for I Max (sink) : 2.5 V
Current range : 0 - 240 A
Power range : 0 - 30000 W
Resistance range : 0.05 Ω - 90 Ω
Output capacitance : 1800 μF
Effi ciency sink/source (up to) : 95.8% *1
Insulation:
Negative DC pole <-> PE : ±1000 V DC
Positive DC pole <-> PE : +1000 V DC
*1 At 100% power and 100% output voltage; BWLL = band width limit
