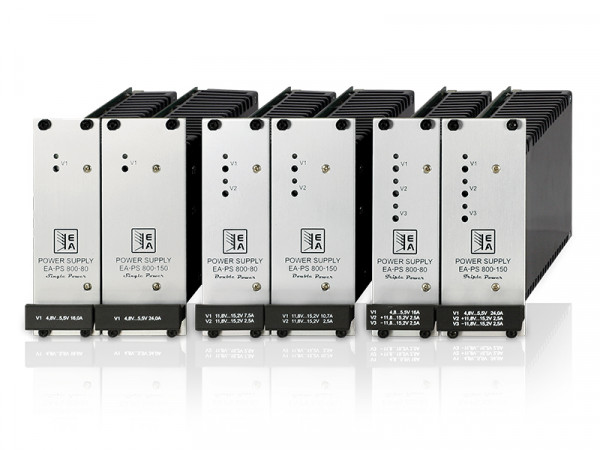

EA Elektro-Automatik EA-PS 805-12-12-240 Triple 19" plug-in DC ການສະຫນອງພະລັງງານເປັນ Euro cassette (5V/30A; +12V/2.5A; -12V/2.5A; 240 Watt)
Output voltage DC: 5 V (4.8...5.5 V)
Load regulation 0...100% Iout : <0.05%
Line regulation 100% Iout : <0.05%
Ripple LF : <40 mVpp
Last Regulation time 10-100% load : <0.5 ms
OVP adjustment : 6.0...6.7 V
Output current / power : 30 A / 225 W
Output current limit : <36 A
Output voltage DC: +12 V (11.8...15.2 V)
Load regulation 0...100% Iout : <0.2%
Line regulation 100% Iout : <0.2%
Ripple LF : <40 mVpp
Last Regulation time 10-100% load : <0.5 ms
OVP adjustment : 16.5...18.0 V
Output current / power : 2.5 A
Output current limit : <3.0 A
Output voltage DC: -12 V (11.8...15.2 V)
Load regulation 0...100% Iout : <0.2%
Line regulation 100% Iout : <0.2%
Ripple LF : <40 mVpp
Last Regulation time 10-100% load : <0.5 ms
OVP adjustment : 16.5...18.0 V
Output current / power : 2.5 A
Output current limit : <3.0 A
Input voltage: AC 90...264 V, 1ph+N, 45...65 Hz, PF = >0.99
Input voltage: DC 90...360 V
Efficiency: bis / up to 92%
Input surge current limitation: <23 A durch / by NTC
Input voltage spike suppression: durch / by VDR
Hold-up time: >20 ms
Output power: 108.....240W
Voltage regulation with sensing: 0.5 V max.
Power fail signal: after >5 ms
Control input: external on-off
Power share with ASF signal: optional
Operation temperature: 0...70 °C
Temperature / Derating:
- with natural convection: >45 °C 6.4 W/°C
- with forced cooling 1 m/s: >60 °C 12 W/°C
Storage temperature: -40 °C ... +85 °C
Relative humidity: <90%, n-c.
Safety: EN 60950, IEC 950
EMI emission: EN 61000-6-3
EMI noise immunity: EN 61000-6-2
Dimensions (WxHxD): 12TE/HP x 3HE/U x 162 mm
Weight: 930g
