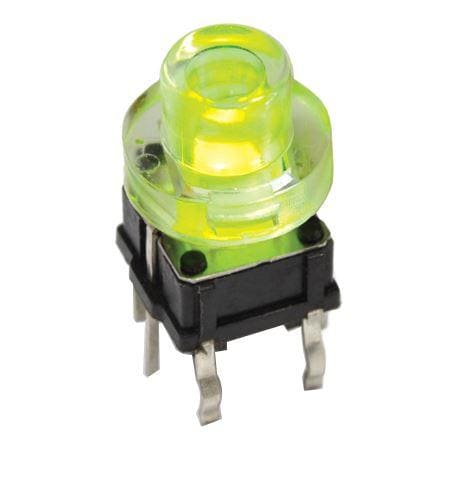

E-Switch TL1265RQRRED ສະຫນັບສະຫນູນສະຫນັບສະຫນູນສະຫນັບສະຫນູນ SPST-NO 0.05A 12V

Life: 500000 Cycle

Width: 6.8 mm

Height: 8.5 mm

Length: 7 mm

Travel: 0.2 mm

Actuator: Round

Cap Color: Red

Lamp Type: LED

Illuminated: Illuminated

Stem Height: 4.5 mm

Contact Form: SPST

Actuator Style: Round

Current Rating: 50 mA

Mounting Style: Through Hole

Contact Plating: Silver

Ground Terminal: No

Operating Force: 160 gf

Switch Function: OFF - (ON)

Termination Style: PC Pin

Voltage Rating DC: 12 VDC

Illumination Color: Red

Mounting Direction: Straight

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
