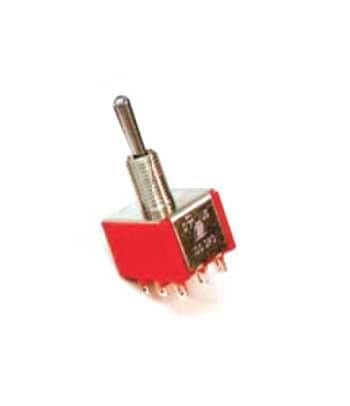

E-Switch 100SP3T1B1M3QE ສະຫນັບສະຫນູນ Toggle TOGGLE, SPDT, ປຸ່ມປິດ-ເປີດ-ປຸ່ມ, ຕິດຕັ້ງບົດ Panel

Life: 40000 Cycle

Actuator: Standard

Illuminated: Non-Illuminated

Bushing Size: 1/4-40

Contact Form: SPDT

Power Rating: 0.4 VA

Mounting Type: Bushing

Terminal Seal: Epoxy

Actuator Style: Round

Current Rating: 2 A, 5 A

Mounting Style: Panel Mount

Actuator Length: 10.41 mm

Contact Plating: Silver

Switch Function: ON - OFF - ON

Actuator Material: Brass, Chrome Plated

Termination Style: Quick Connect

Voltage Rating AC: 120 VAC

Voltage Rating DC: 28 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
