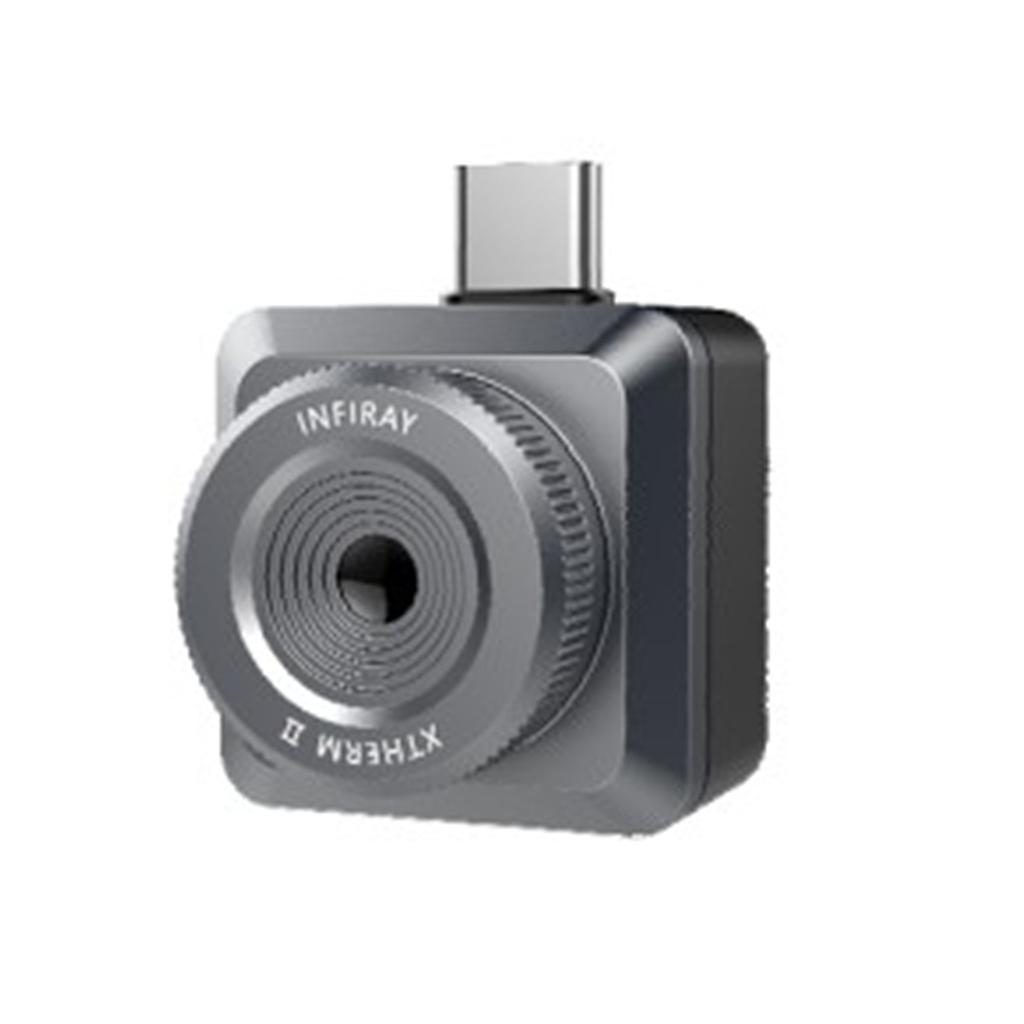

DYT TYpe-256 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນອິນຟາເລດ M-256 (256*192,-20oC~+120oC)

Type: TYpe-256

Thermal resolution: 256*192

Spectrum: 12μm

FOV: 44.9°×33.4°

FPS: 25Hz

NETD: ≤60mK@25℃,F#1.0

MRTD: ≤500mK@25℃,F#1.0

Operation temperature: -10℃～+50℃

Measure temperature: -20℃~+120℃

Accuracy: ±3℃,±3%

Temperature correction: manual/automation

Power dissipation: <350mW

Net weight: <18g

dimension: 26*26*24.2mm

Support system: Android 6.0 or above

Image intensification: Digital detail enhancement

Image correction: manual

Palette: White hot/black hot/ Multiple pseudo-color palette

Secondary development: provide SDK development kit

Temperature measurement statistics: hottest/coldest/central point, and Temperature measurement and statistics function of point, line and region

Video storage: support picture and video storage function

Software update: Support online software update function

Product Description

Type-256 The series infrared thermal imager is a high performance mobile phone plug-in infrared thermal imaging product , developed based on WLP encapsulated uncooled vanadium oxide infrared detector. The product is aimed at the consumer market of household pipe leakage, floor heating equipment, door and window insulation, electrical equipment fault detection, hot spot detection, portable temperature detection and vehicle maintenance and other applications。

This product can be applied to mobile phones/tablets, computers and other devices with USB Type-C interface. With the help of professional APP software or PC software, real-time infrared image display, temperature statistics display and other functions can be realized.

Product Features

1、The product size is small, easy to carry；

2、Using USB Type-C interface, it can be directly connected with mobile phones/tablets that support USB Type-C interface；

3、Low power consumption；

4、High image quality；

5、Temperature measurement precision；

6、APP Easy operation of software；

7、Support secondary development, easy integration。
