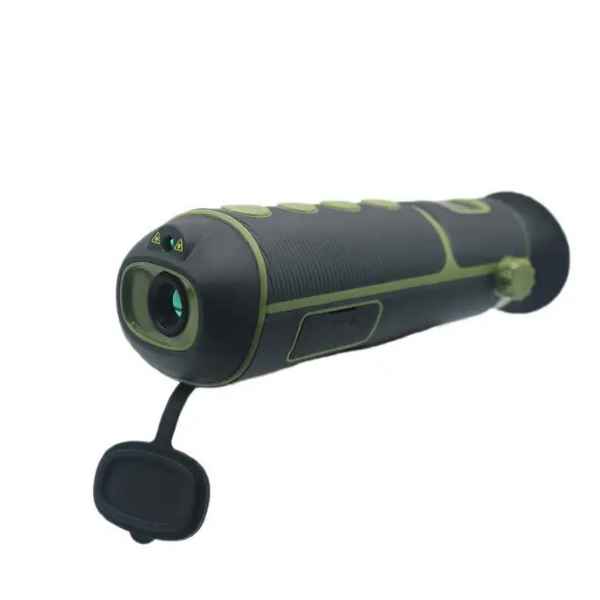

DYT N-12 ການ​ຖ່າຍ​ຮູບ​ຄວາມ​ຮ້ອນ Monocular (256*192, -20℃~+60℃)

Resolution:256´192

Spectral range:8-14 um

Pixel Pitch:12um

NETD:<50mK @25℃, F#1.0

Frame Rate:25Hz

Working temperature:-20-60℃

Weight:<90g

Interface:USB, HDMI

Eyepiece:LCOS 0.2′ screen

Resolution of 720´576

Laser indication:Support

Electronic amplification:1x/2x/4x electronic amplification is supported

Lens:10.8mm/F1.0

Temperature measuring accuracy:±3℃ or ±3% of the reading, whichever is greater

Voltage:5V DC

Palette:8 built-in palettes

Lens parameters:4mm, 6.8mm, 9.1mm, and 11mm are supported

Focus mode:Manual focusing/fixed focus

Picture save:SD card

Photograph:Photos of MJEG format

Laser ranging:TTL interface is provided, for which it can be equipped with different laser ranging modules

Key:A key board including 4 keys is provided, for which it can adjust the function sequence according to a customer’s requirements

Overview

N-12 night vision device module   is specially used for infrared thermal imaging night vision products, which contains a complete set of solution components such as objective lens, eyepiece, thermal imaging component, key, circuit module and battery. A consumer may complete the development of an infrared thermal imaging night-vision device in no time, with only the appearance design to consider.

 Product Features

The module is complete, with no need to consider additional development;

The resolution of 256 * 192 provides clear image and supports a variety of palettes;

Photograph and storing photos with SD card are supported;

HDMI video output is supported, for which it can be connected to an external screen for video output;

USB charging and image copying are supported;

A four-key design, with power supply, photographing, electronic amplification (1x/2x/4x amplification), palette, laser indication and other functions;

Laser indication is supported;

LCOS screen is adopted for the eyepiece, with a resolution of 720 * 576;

It can be connected with laser ranging module;
