Thermal imaging resolution: 160*120 / 256* 192
Detector parameters
Size of surface element: 12um;
NETD: ＜ 50mK @25℃;
Frame frequency: 25Hz
Temperature measuring parameters
Temperature measuring range: (-15-600)℃;
Measuring accuracy: ±2℃ or ±2% of the reading;
Temperature measuring method: Point temperature measuring, line temperature measuring, regional temperature measuring, high and low temperature automatic tracking, above-threshold alarm
Infrared lens parameters: 3.2mm/F1.1;
Field angle of H56°: V42°
Focus mode: Fixed focus
Interface: USB type-C
Image mode: Soft mode, texture enhancement, high contrast
Palette: 6 palettes are supported
Temperature width: Temperature measuring range is adjustable
Menu functions: Language, emissivity, temperature unit, high temperature alarm,high and low temperature switch, picture and video

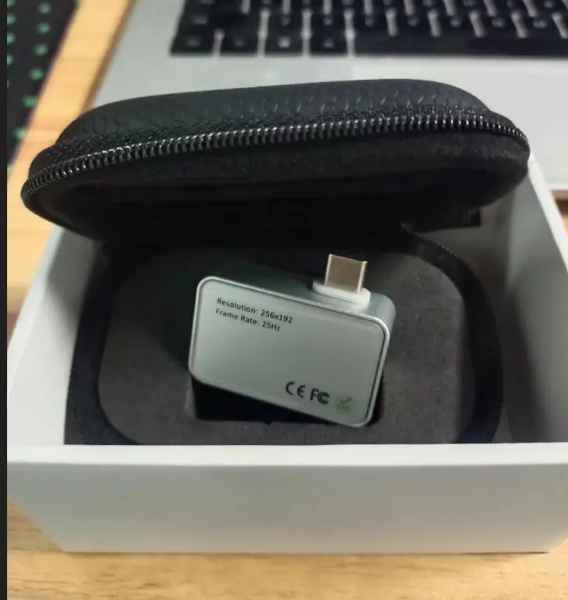

H2FB Mobile thermal camera is a light and mini sized infrared thermal imaging analysis product with high precision and fast response. It can be directly used on an Android phone via a professional thermal imaging analysis App to conduct multi-mode heat map analysis anytime and anywhere. The product is widely applied in equipment maintenance, outdoor search, air conditioning maintenance and other scenes.
