Thermal imaging
Detector resolution: 320x240
Spectral range: 8~14 μm
Frame rate:9Hz
NETD:70mK@25°C (77°C)
FOV: H 56°, V 42°
Lens:4mm
Temperature range:-10°C ~ 450°C (14°F ~ 842°F)
Temperature measurement accuracy:±2°C or ±2%
Temperature measurement:Hottest, coldest, central point, zone area temperature measurement
Color palette:Tyrian, white hot, black hot, iron, rainbow, glory, Hottest, coldest
Visible light
Resolution:640×480
Frame rate:25Hz
LED light:Support
General
Display Resolution:320×240
Display Size:3.5 inch
Image mode:Outline fusion, overlay fusion, picture-in-picture, infrared thermal imaging, visible light
Working time:4,800mah battery, up to 5 hours continuous use
Battery Charge:Built-in battery, it is recommended to use +5V & ≥2A universal USB charger
Wi-Fi:Support App and PC software data transmission
Operating temperature:-20°C~+60°C
Storage temperature:-40°C~+85°C
Waterproof and dustproof:IP54
Camera Dimension:230mm x 100mm x 90mm
Net weight:420g
Package dimension:270mm x 150mm x 120mm
Gross weight:970g
Storage
Capacity:Built-in 8G card, store more than 50,000 pictures
Picture storage mode:Save thermal, digital and blending images Simultaneously
File format:JPG and TIFF format, support full frame pictures temperature analysis
Image analysis
Windows system analysis software:Provide professional analysis functions of full pixels temperature
Interface
Data and charging interface:USB Type-C（Support battery charging and data transmission）
Secondary development
Open interface:Provide WiFi interface SDK for secondary development
Overview

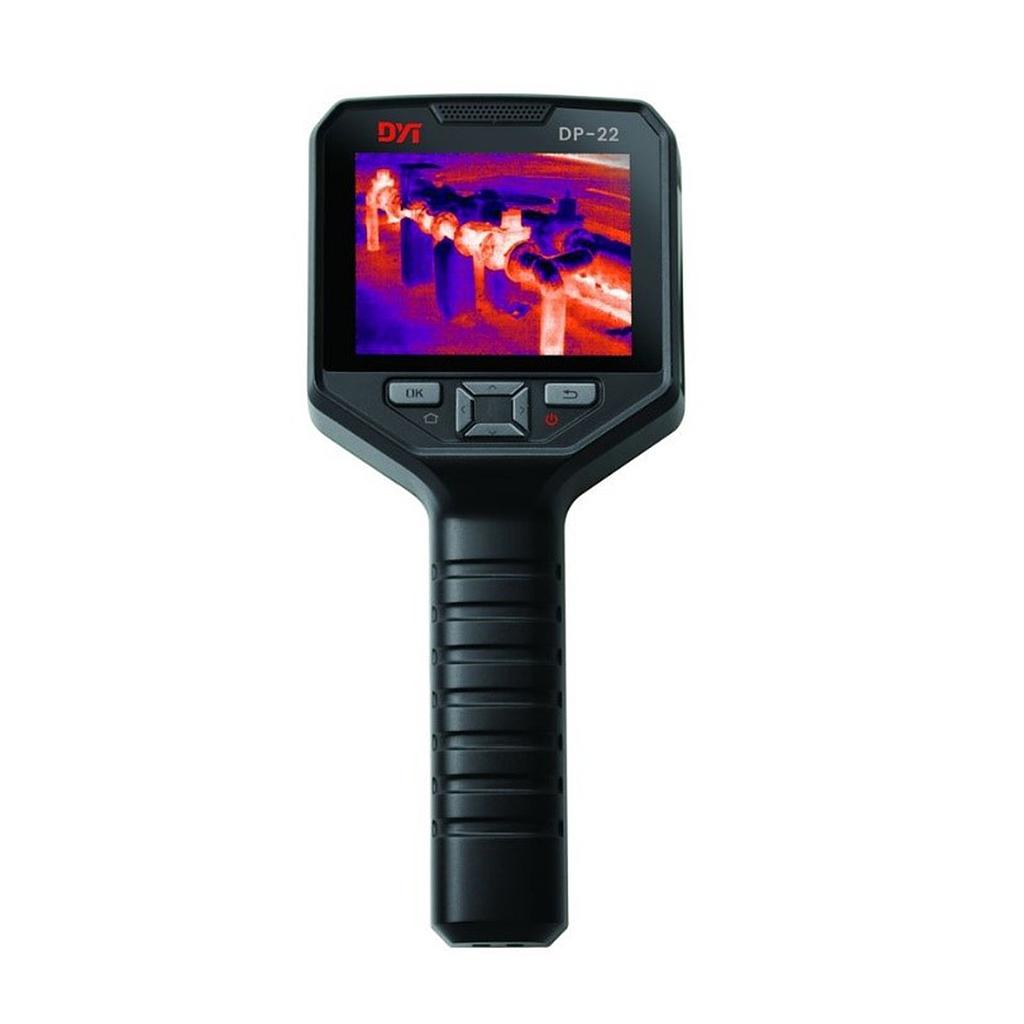

DP Series Handheld Infrared Thermal Imaging Device is a high-precision thermal imaging handheld device. Due to its infrared thermal imaging and HD camera synchronous display, the product is able to detect the temperature of the target object and image, thereby rapidly detecting the fault state of the target object. It can be widely applied in mechanical equipment testing, automobile maintenance testing, air conditioning maintenance, power cruise, equipment temperature troubleshooting and other scenes.
Application
Night vision
Power line failure detection
Device defect detection
Printed circuit board troubleshooting
HVAC repair
Car repair
Pipeline leakage
Property management
