DYT DP-15 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນ (256*192, -20~400℃)

Name: DYT DP-15 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນ (256*192, -20~400℃)
Brand: DYT

ຜູ້ຜະລິດDYT(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelDP-15

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Infrared

Sensor resolution: 256×192 / 120×90

Spectral range: 8~14um

Frequency: 25Hz

NETD: 70mK@25℃

FOV: 55°X83° / 38°X50°

Lens: 3.2mm / 2.3mm F1.1

Temperature range: -20~400℃

Accuracy: ±2°C or ±2%

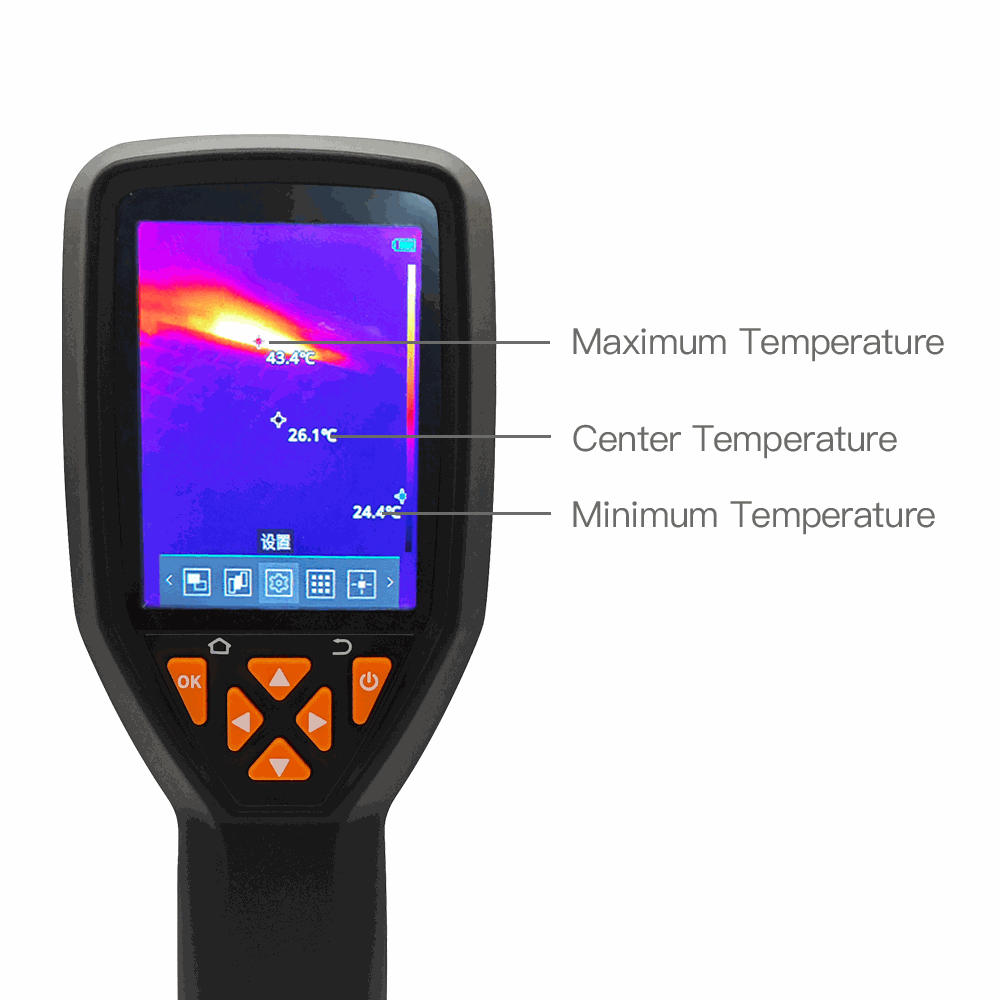

Measurement option: Highest,lowest、central and zone temperature

Palette: Iron red、white hot、black hot、rainbow, red hot、high contrast、green hot、volcano

Visual light

Resolution: 720P

FOV: 55°X83°

Display

Screen: 2.8 inch

Image mode: Edge blend、overlay blend、Pip、thermal、visual light

General

Language: English、French、Germany、Spanish、Arab and more

Interface: USB Type-C

Battery: 2600mAh Li-ion rechargeable

Working time: Around 4 hours continuous use

Working temp: -10°C~+60°C

Storage temp:-40°C~+85°C

Product size: 70mmx80mmx200mm

N.W: 310g

Dimension: 115mmx170mmx300mm

Storage

Capacity: 8G memory, store more than 20k pictures

Picture format: JPG

Video format: MP4

3D handheld thermal camera is an intimate tool for quickly locating and diagnosing electrical, mechanical, building, and floor heating problems. Assist you quickly locate hotspots and easily identify problems. Powerful computer analysis software can transmit video in real-time, organize photos offline, and add detailed notes. Besides, share and save the current analysis report to make the detection more efficient.

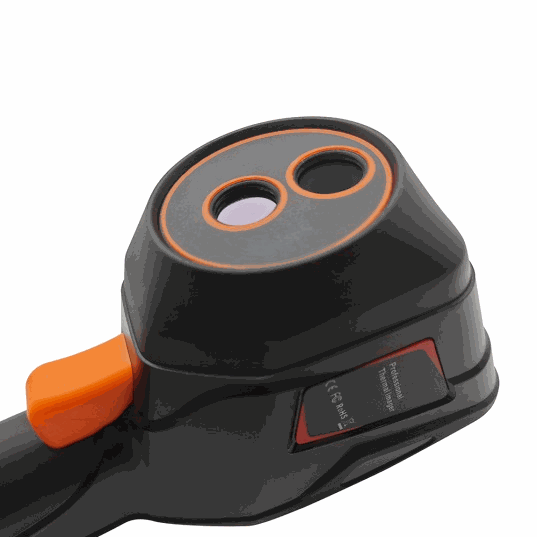

Double light design

Outfit infrared light and visible light to capture more details

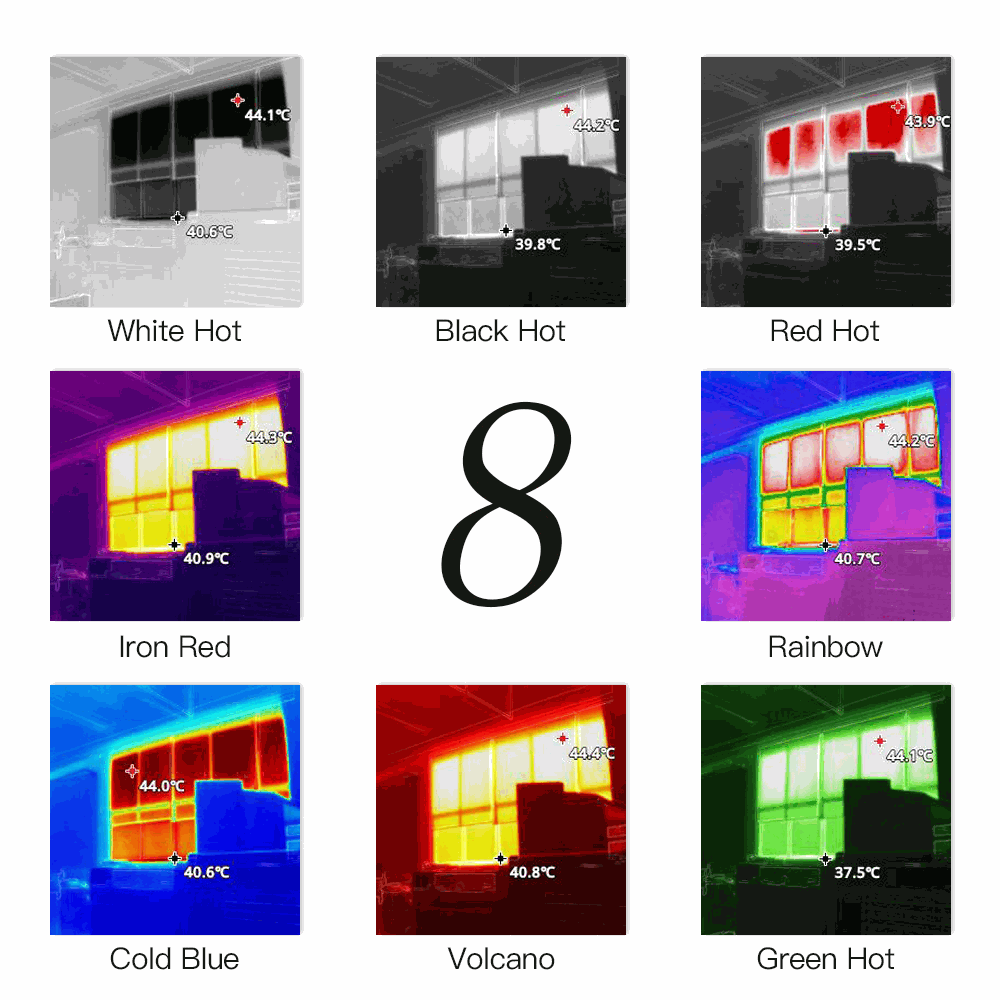

8 color palette

Optimized palette on base of different scenarios to help users easily observe different target

Rugged and compact

Compact design for easy carry and use

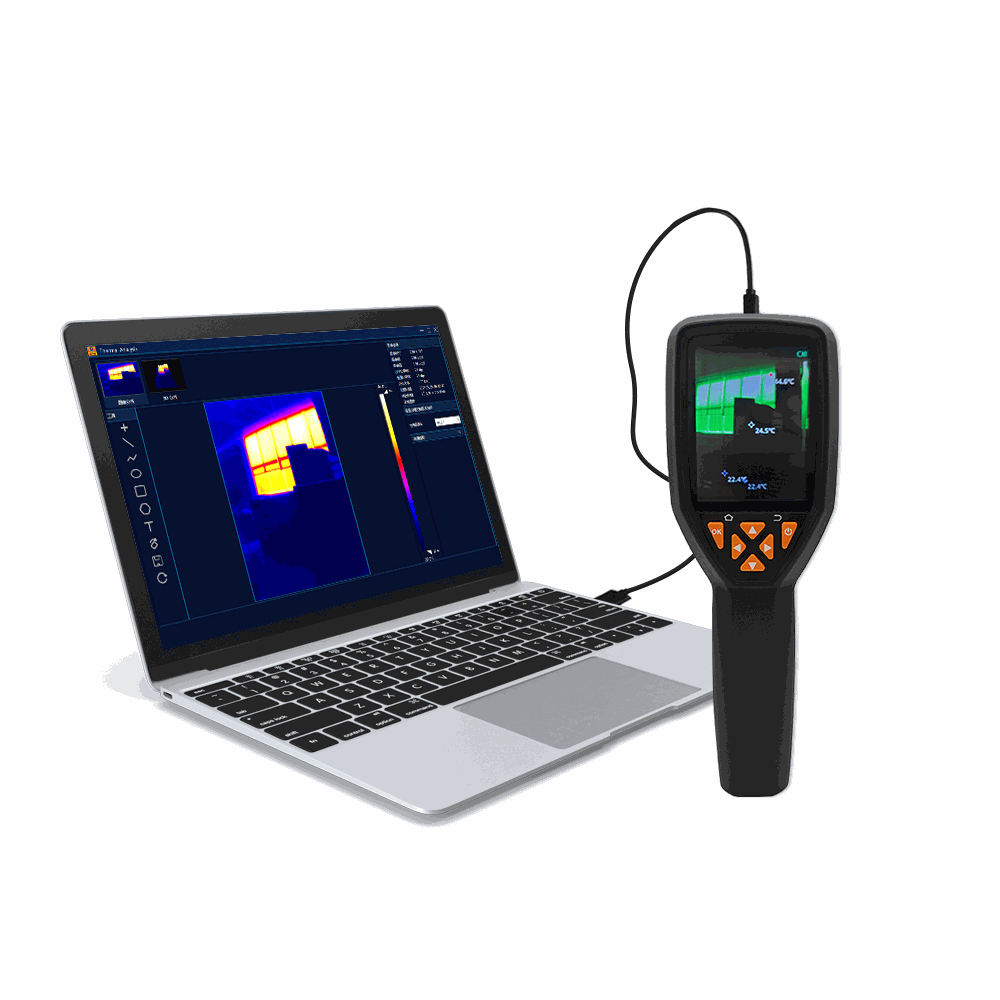

Direct PC connection

Support direct PC connection, to provide real-time video transmission

High temperature alarm

When temperature exceed setting value It will flicker on screen and buzz

High and low temperature tracking

Fast response to track high and low temperature

3D Software analysis

To provide more dimensions to observe and analyze product’s thermal structure design as well as temperature changes

Support video function

Apart from photograph, it also support video function to render better user experience
