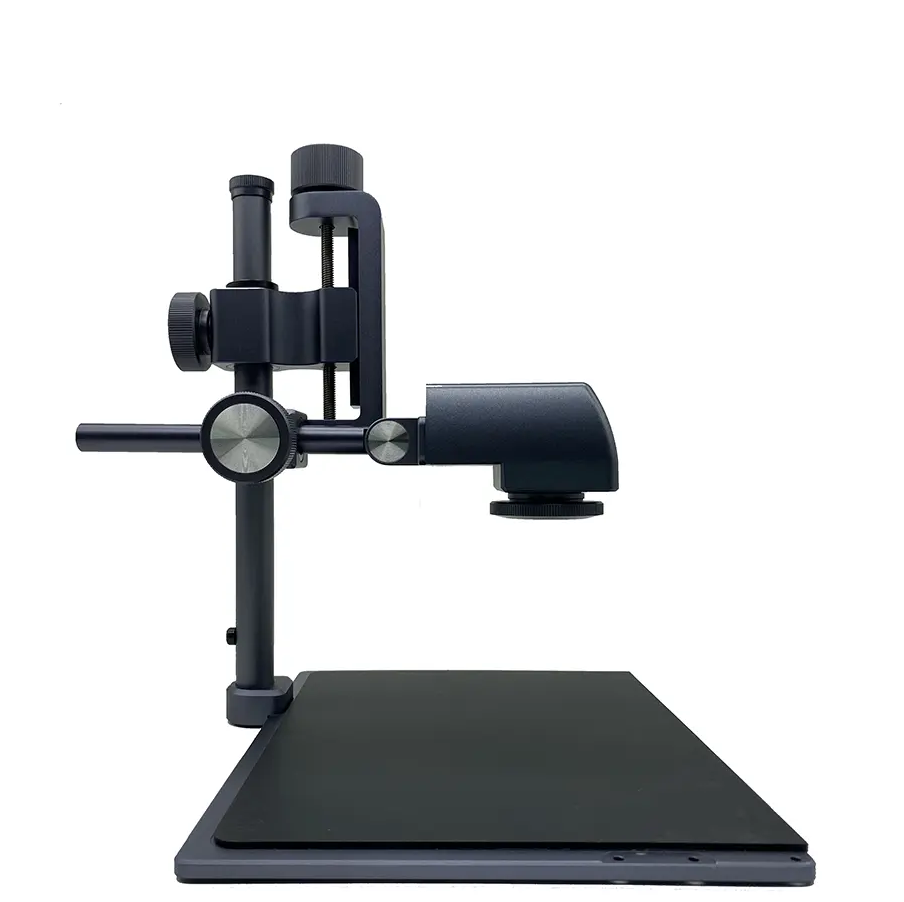

DYT CA-10 Infrared Thermal Analyzer ຄວາມລະອຽດ 260*200 (-10°C~120°C, 260*200)

Resolution: 260* 200

Spectral range: (8-14)um

Field angle: 42°*32°

NETD: ＜60mK at 25°C, F#1.0

Frame frequency: 25Hz

Focus mode: Manual focusing

Working temperature: (-10-55)°C

Temperature measuring range: (-10-120)°C

Temperature measuring accuracy: ±3°C or ±3% of the reading, whichever is greater

Optimum distance for temperature measurement: (30-1500)mm

Emissivity correction: Adjustable within 0.1 – 1.0

Data sampling rate: 5 samples per second can be set

Palette: 5 palettes are supported;

Image file: Full-temperature thermal image of jpg format

Video file: MP4

Menu functions: Language, temperature unit, emissivity, temperature unit, high temperature alarm, update detection, file save location, etc.

Device size: (220 x 172 x 241)mm
