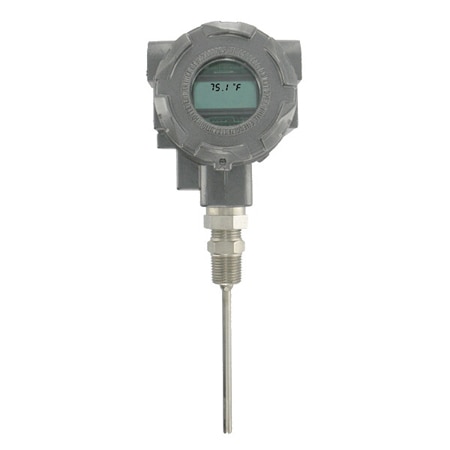

Dwyer TTE-118-W ຕົວສົ່ງອຸນຫະພູມ RTD ປ້ອງກັນການລະເລີຍ, -30 ຫາ 250 °F, ປັບງ່າຍ, ລະບົບອາກາດຢູ່ທະເລ (Pt1000, 250 °F)
Weight: 1134 g
Compliance: FM
Input Note: User selectable – any range between -30 to 250°F with a minimum span of 40°F FIELD-SELECTABLE RANGES 40 to 90°F (4.4 to 32.2°C) -20 to 140°F (-28.9 to 60°C) 0 to 100°F (-17.8 to 37.8°C) 30 to 240°F (-1.1 to 115.6°C) 32 to 212°F (0 to 100°C) 32 to 122°F (0 to 50°C) -30 to 65°C (-1.1 to 18.3°C) Custom range between -30 to 250°F (-34.4 to 121.1°C)
Protection: Explosion-Proof
Sensor Type: Pt1000
Display Type: N/A
Probe Length: 18 in
Output Detail: 4-20 mA (2-wire loop powered)
Output Signal: Current
Response Time: 250 ms
Current Output: 4 to 20 mA
Supply Voltage: 10 to 35 Vdc
Number of Wires: 2
Pressure Limits: Up to 2000 psi
Thermal Effects: ± 0.02%/°C max
Measurement Type: RTD
Construction Type: Well Probe
Enclosure Ratings: Hazardous Location Rated
Materials, Wetted: 316 Stainless Steel
Supply Power Type: DC
Transmitter Accuracy: Transmitter: ± 0.1%, Probe: ± 0.3%
Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings Note: Enclosure Rating: Weatherproof NEMA 4X (IP66) and Explosion-proof. Listed with FM for Class I, Division 1, Groups B, C and D, and dust-ignitionproof for Class II, Division 1, Groups E, F and G and Class III atmospheres. ATEX Certified: 2813 II 2 G Ex db IIC T6...T4 Gb, 2813 II 1 D Ex ta IIIC T111°C Da, T6 Process Temp ≤80°C, Temperature Class T5 Process Temp ≤95°C, Temperature Class T4 Process Temp ≤120°C as defined on nameplate. EU type Cerificate No.: EMT17ATEX0021 X. ATEX Standards: EN IEC 60079-0, EN 60079-1, EN 60079-31. IECEx Certified: For Ex db IIC T6...T4 Gb, Ex ta IIIC T111°C Da, T6 Process Temp ≤80°C, Temperature Class T5 Process Temp ≤95°C, Temperature Class T4 Process Temp ≤120°C as defined on nameplate. IECEx Certificate of Conformity: Element IECEx EMT 17.0007X; IECEx Standards: IEC 60079-0, IEC 60079-1, IEC 60079-31. UKCA Ex Certified for: 0518 II 2 G Ex db IIC T6...T4 Gb / II 1 D Ex ta IIIC T111°C Da, T6 process temp ≤ 80°C, T5 process temp ≤ 95°C, T4 process temp ≤ 120°C. UKCA Ex Certificate of Conformity: EMA22UKEX0066X. UKCA Ex Standards: EN IEC 60079-0, EN 60079-1, EN 60079-31.
Process Connection Size: 1/2 in
Process Connection Type: NPT Male
Process Temperature, Max: 250 °F
Process Temperature, Min: -30 °F
Operating Temperature, Max: 158 °F
Operating Temperature, Min: -4 °F
