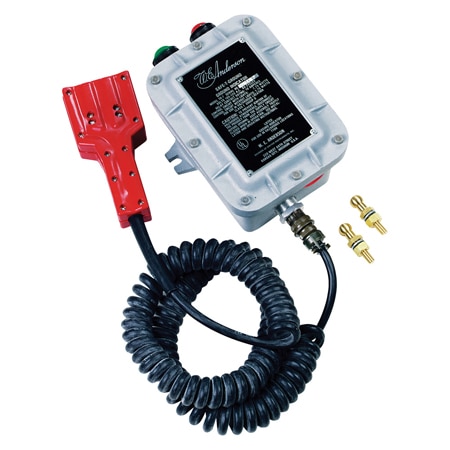

Dwyer TR-7-UXB ລະບົບກວດສອບດິນທີ່ຜ່ານການຮັບຮອງ UL ສໍາລັບລົດຖີ່ນຖັງນ້ຳ
Width: 6.625 in
Height: 10.375 in
Length: 5.625 in
Weight: 20 lb
Mounting: 7/16˝ Mounting lugs, Integrally cast
Materials: Copper free aluminum
Compliance: UL
Switch Type: DPDT
Weight Note: 20 lb with contactor and cord
Cable Length: 72 in
Contact Type: Grounding Clamp
Ground Strap: 2 supplied. Order a pair for each truck
Switch Rating: 10 A @ 125 Vac
Indicator Type: N/A
Supply Voltage: 220 to 240 Vac
Cable Connection: Battery Type Contactor
Construction Type: Explosion-proof and intrinsically safe
Contact Type Note: (Grounding clamp) molded polyethylene with beryllium copper contact clips. 16-2 type SO coiled cable; retracts to 3´, extends to 16´
Power Consumption: 1.75 W
Supply Power Note: 105-125 VAC, 60 Hz. 7.75 watts - with light, 1.75 watts - without lights. Optional 220-240 VAC, 50/60 Hz
Supply Power Type: AC
Conduit Connection: 3/4 in NPT Female
Wiring/Connector Table: Terminal Strip
Operating Temperature, Max: 104 °F
Operating Temperature, Min: -13 °F
