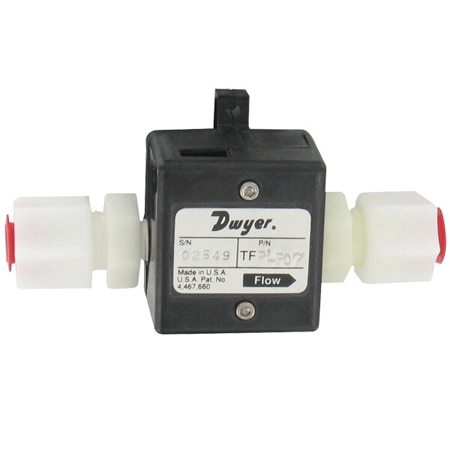

Dwyer TFP-LP09 ເຄື່ອງວັດອັດຕາໄຫມ້ກະວົງ - 0 ຫາ 5 Vdc ອອກສຽງສໍາລັບອຸດສາຫະກຳ ແລະ ການໃຊ້ງານໃນຫ້ອງປະມານ (160 gal/h)
Length: 3.8438 in
Weight: 0.19 lb
Accuracy: ± 1 %
Linearity: ± 1%
Compliance: CE
Port 1 Size: 3/8 in
Port 1 Type: Compression Fitting
Port 2 Size: 3/8 in
Port 2 Type: Compression Fitting
Sensitivity: ± 0.2% FS/°C
Output Detail: 0 to 5 VDC: Minimum 2.5 kΩ Load; Pulse: 7.5 VDC Peak Buffered Square Wave
Output Signal: Voltage, DC Pulse
Pressure Type: Gauge
Repeatability: ± 0.2%
Supply Voltage: 11.5 to 15 Vdc
Pressure Limits: Up to 100 psi
Enclosure Ratings: IP10, NEMA Type 1
Materials, Wetted: Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire
Power Consumption: 35 mA @ 12 Vdc
Supply Power Type: DC
Media Compatibility: Alcohols, Compatible Liquids, Oils, Water
Electrical Connection: Four-Pin
Storage Temperature, Max: 158 °F
Storage Temperature, Min: 32 °F
Volumetric Flow Rate, Max: 160 gal/h
Volumetric Flow Rate, Min: 16 gal/h
Operating Temperature, Max: 131 °F
Operating Temperature, Min: 41 °F
