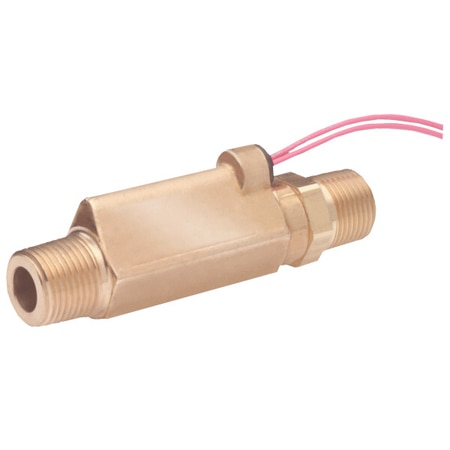

Dwyer P8-11 ສະວັດກະທອງຄວາມດັນສູງສຳລັບການໄຫຼ, 0.25-2.0 GPM, ການນໍາໃຊ້ອຸດສາຫະກຳ (0.25 GPM)
Filter: 100 μ or better
Weight: 0.17 kg
Accuracy: ± 20 %
Compliance: CE
Wire Gauge: 22 AWG
Port 1 Size: 3/8 in
Port 1 Type: NPT Male
Port 2 Size: 3/8 in
Port 2 Type: NPT Male
Sensor Type: Compatible Liquids
Switch Type: SPST NO
Accuracy Note: ± 20% of set point
Pressure Type: Gauge
Switch Rating: 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc
Pressure Limits: Up to 1500 psi
Sensor Material: Brass; PPS composite, Stainless Steel, Fluorocarbon
Mounting Orientation: Vertical Lead wires Down
Pressure Limits Note: 1500 psi (103.4 bar)
Electrical Connection: Pigtail Leads
Actuation Set Point, Max: 0.25 GPM
Operating Temperature, Max: 275 °F
Operating Temperature, Min: -20 °F
