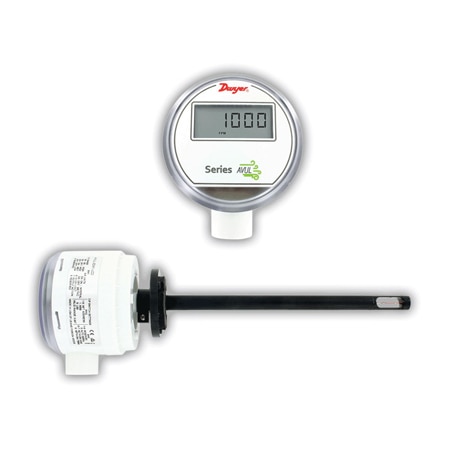

Dwyer AVUL-5DB1-LCD ອຸປະກອນສົ່ງສະຫນອງຄວາມໄວອາກາດ, ຄວາມແມ່ນຢູ່ທີ່ 3% ຫຼື 5%, ເໝາະສົມສໍາລັບລະບົບ VAV (4000 FPM, ± 5 %)
Weight: 6 oz
Accuracy: ± 5 %
Baud Rate: 9600 to 115200
Compliance: BTL, CE
Wire Gauge: 26 to 16 AWG
Device Load: 1/8 Unit
Display Type: LCD
Accuracy Note: ± (0.2 m/s + 5% of reading) @ standard conditions
Output Detail: 4 to 20 mA; 0 to 5 Vdc, 0 to 10 Vdc
Output Signal: Current, Voltage
Response Time: 10 s @ 90%
Data Interface: BACnet MS/TP
Supply Voltage: 19 to 30 Vdc/Vac
Load Resistance: Current Output: 0 to 1100 Ω max; Voltage Output: 1 kΩ min
Number of Digits: 5
Air Velocity Note: 1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s); Field selectable
Air Velocity, Max: 4000 FPM
Enclosure Ratings: IP66, NEMA Type 4X
Materials, Wetted: Consult Factory
Power Consumption: 60 mA + Output Current
Relative Humidity: 5 to 95% RH Non-Condensing
Supply Power Type: AC/DC
Media Compatibility: Argon, Carbon dioxide, Clean Dry Air, Helium, Nitrogen, Non-Corrosive Dry Gases
Mounting Orientation: Sensor Tip Parallel to Flow
Electrical Connection: 1/2 NPS female Conduit with Screw Terminal block
Operating Temperature, Max: 122 °F
Operating Temperature, Min: 32 °F
Zero Setting Adjustable Range: Digital Push Buttons
