Weight: 15 oz
Accuracy: ± 0.25% span ± 1 least significant digit
Compliance: CE, cULus
Input Type: Thermocouple, RTD, DC Voltage or DC Current
Output Note: Voltage pulse: 14 VDC (max. 40 mA); Relay: SPDT, 5 A @ 250 VAC resistive
Switch Type: SPDT NO/NC, Selectable

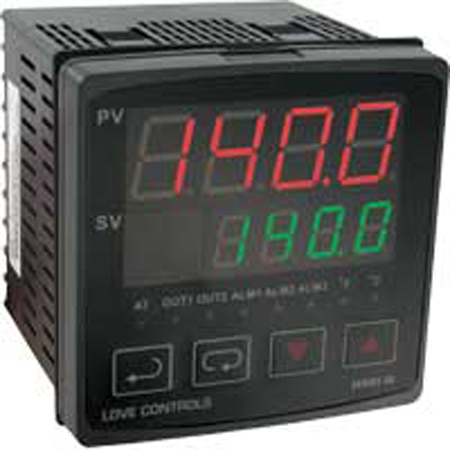

Display Note: Two 4 digit, 7 segment LED’s. PV: Red, SV: Green
Display Type: LED
Memory Backup: Non-Volatile
Switch Rating: 5 A @ 250 Vac
Control Output: Voltage Pulse, SPDT Relay
Data Interface: RS-485 Modbus ASCII/RTU
Supply Voltage: 100 to 240 Vac
Output Type (A): Linear Voltage
Output Type (B): Relay
RTD Input Range: JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F
Number of Digits: 4
Enclosure Ratings: IP56
Power Consumption: max 5 VA
Supply Power Note: 100-240 VAC, 50/60 Hz; Optional 24 VDC
Supply Power Type: AC
Voltage Input Range: 0 to 5 V, 0 to 10 V
Input Control Signal: 0 to 20 mA
Mounting Orientation: 1/4 DIN
Voltage Output Range: 14 Vdc
Temperature Sensor Type: RTD or Thermocouple
Operating Temperature, Max: 122 °F
Operating Temperature, Min: 32 °F
Thermocouple Input Range Note: Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F
