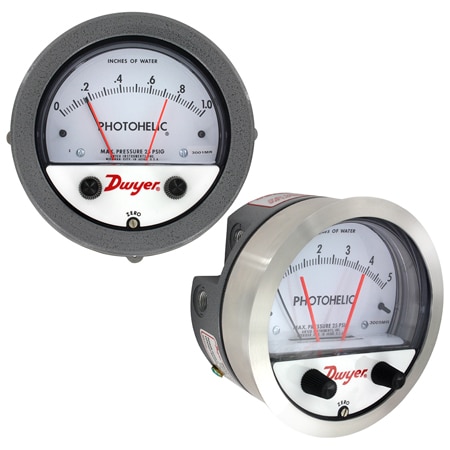

Dwyer 3000MRS-10MM ຕົວປ່ຽນ/ເຄື່ອງວັດຄວາມດັບ Photohelic®, ຄວາມດັບຕ່າງ, 25 psig ສູງສຸດ, ຂະໜາດກະທົບ (Differential, 10 mmHg, NPT Female, 1/8 in)
Weight: 1.8 lb
Accuracy: ± 3 %
Dial Dia: 4 in
Division: 0.5 mmH2O
Compliance: CE
Dial Depth: 3.125 in
Switch Note: 20-280 VAC (47-63 Hz), 1.0 amp (AC) max., 0.01 mA (AC) min., (2) SPST NO.
Switch Type: SSR
Accuracy Note: ± 2% of FS (3000-0 ± 3% of FS). (3000-00 ± 4% of FS)
Pressure Type: Differential
Pressure, Max: 10 mmHg
Pressure, Min: 0 inH₂O
Switch Rating: 20 to 280 Vac, 0.01 mA to 1 A
Proof Pressure: -20 inHg to 25 psi
Supply Voltage: 24 Vdc
Materials, Wetted: Consult Factory
Supply Power Note: 24 Vdc, regulated ± 10%
Supply Power Type: DC
Dial Outer Diameter: 5 in
Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
Mounting Orientation: Vertical Diaphragm
Set Point Adjustment: Adjustable Knobs
Electrical Connection: Cable
Process Connection Note: 1/8˝ female NPT (duplicated side and back)
Process Connection Size: 1/8 in
Process Connection Type: NPT Female
Operating Temperature, Max: 120 °F
Operating Temperature, Min: 20 °F
