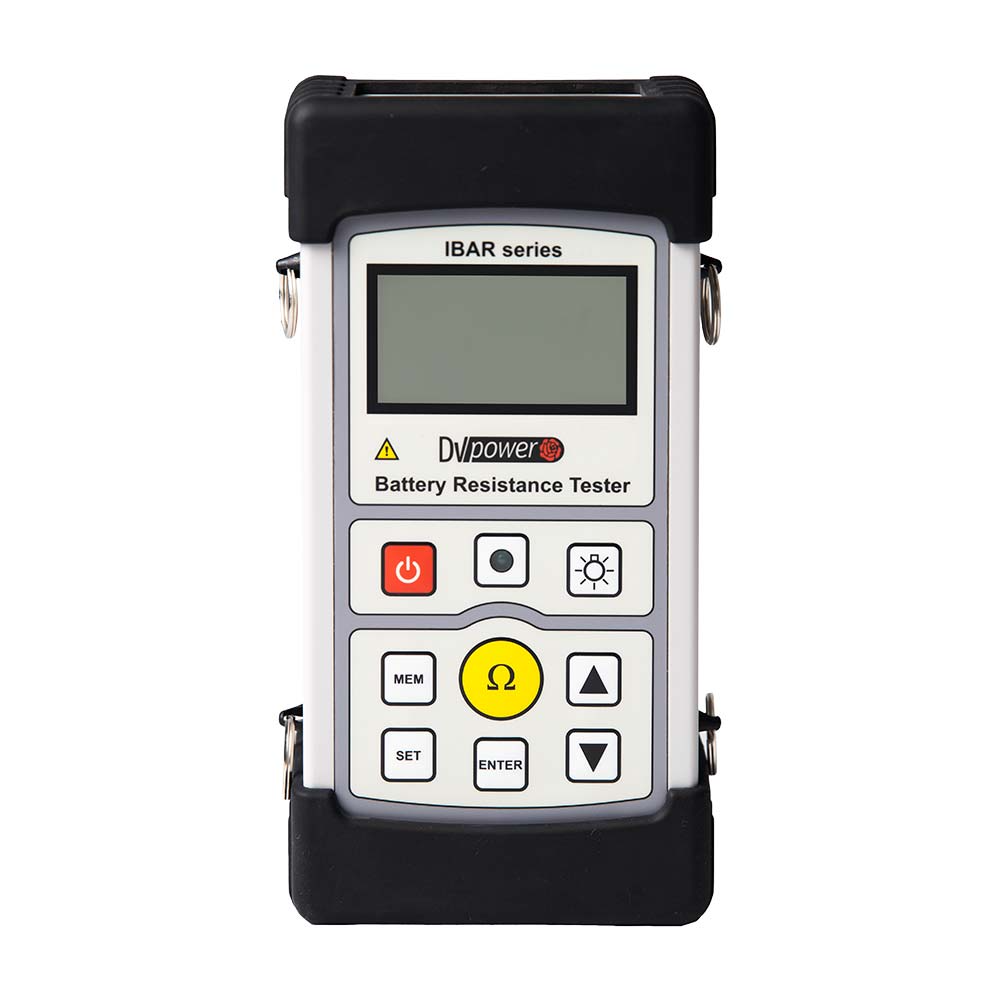

DV Power IBAR series ເຄື່ອງທົດສອບຄວາມຕ້ານທານຫມໍ້ໄຟ
Battery
• Type: 2 Cells – 2900 mAh Li-Ion
• Voltage: 7.4 V
• Charge time 6 hours
AC Adapter
• Input voltage: 90 to 264 V AC, 50/60 Hz
• Output voltage: 12 V DC
• Output current: 1 A
Resistance measurement (Range/ Test current/ Accuracy)
<5mΩ(1 uΩ res.)/ 150 mA/ ±1.0%rdg ± 0.1%FS
5mΩ -50 mΩ(10 uΩ res.)/ 150 mA/ ±0.8%rdg ± 0.1%FS
50 mΩ -500 mΩ(100 uΩ res.)/ 15 mA/ ±0.8%rdg ± 0.1%FS
500 mΩ - 5 Ω(1 mΩ res.)/ 1.5 mA/ ±0.8%rdg ± 0.1%FS
Display
• Type: FSTN-LCD 2.8 in
• Format: 128 x 64 Dots
• Outline dimension:
• 70.0(W)x50.0(H)x5.8(T)mm
• Active Area: 63.95 (W) x 31.65 (H) mm
Communication
• USB: Device to PC
Memory
• Internal flash memory: 64 Mbit
Real time clock
• Precision: ±5 seconds per month
• Calendar: 100 year with leap year detection
• Time retention: 10+ years (battery removed)
Environment conditions
• Temperature: -10 °C to +45 °C / 14 °F to +113 °F
• Maximum relative humidity 95 % for
Temperatures up to 31 °C, decreasing
Linearly to 40 % relative humidity at 55 °C
Dimensions and Weight
• Dimensions (L x W x D): 223 mm x 98 mm x 46 mm/ 8.77 in x 3.85 in x 1.81 in
• Weight: 0.5 kg / 1.1 lbs
