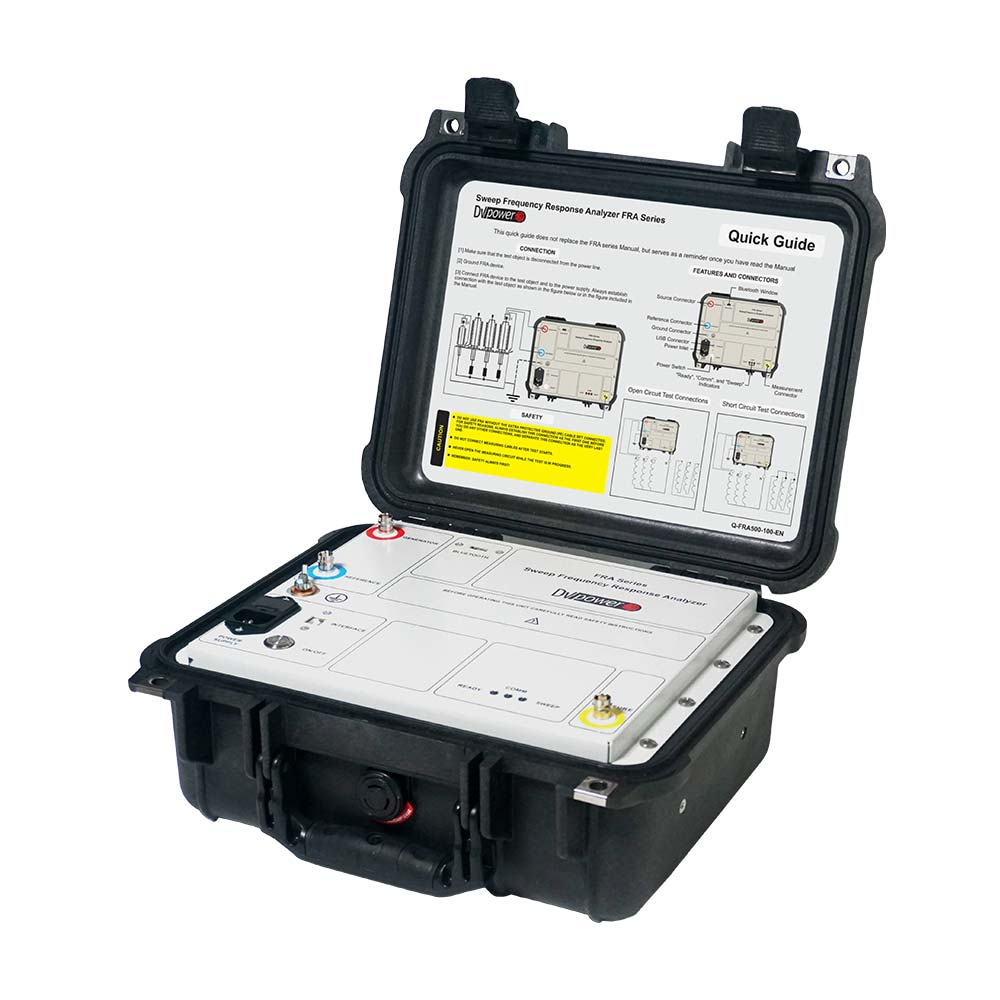

DV Power FRA500 Sweep Frequency Response Analyzer (0.1 Hz – 32 MHz)
Mains Power Supply:
Connection: according to IEC/EN60320-1; UL498, CSA 22.2
Mains supply: 90 – 264 V AC, 47 - 63 Hz
Input power: 50 VA
Fuse: T5L250V
Measurement
Sweep frequency range: 0.1 Hz – 32 MHz
Sampling rate: 100 mega samples per second
Sample points per sweep: 1050 points by default, 32000 points total (user selectable)
Total sweep time: less than 20 seconds (20 Hz – 2 MHz)
Point spacing: log, linear, or both
Accuracy: ±0.1 dB from +10 to -60 dB and ±0.3 dB from -60 dB to -140 dB
Input channels: 2 x 50 Ω impedance
Sampling: Simultaneous
Output channels: 1 x 50 Ω impedance, shortcircuit and overvoltage protection
Compliance voltage: 0 – 24 V p-p in 0.2 V p-p steps
Measurement voltage at 50 Ω: 0 – 12 V p-p
Frequency resolution: 0.01 %
Frequency accuracy: 0.01 % (measurement error)
Level resolution: 0.0005 dB
Environmental Conditions
Operating temperature: -20 ºC – +55 ºC / -4 ºF – +131 ºF
Storage temperature: -20 ºC – +70 ºC / -4 ºF – +158 ºF
Humidity: <95% RH, non-condensing
Dimensions and Weight
Dimensions (W x H x D): 340 x 290 x 150 mm / 13 x 11 x 6 in
Weight: 4.5 kg / 10.0 lbs.
