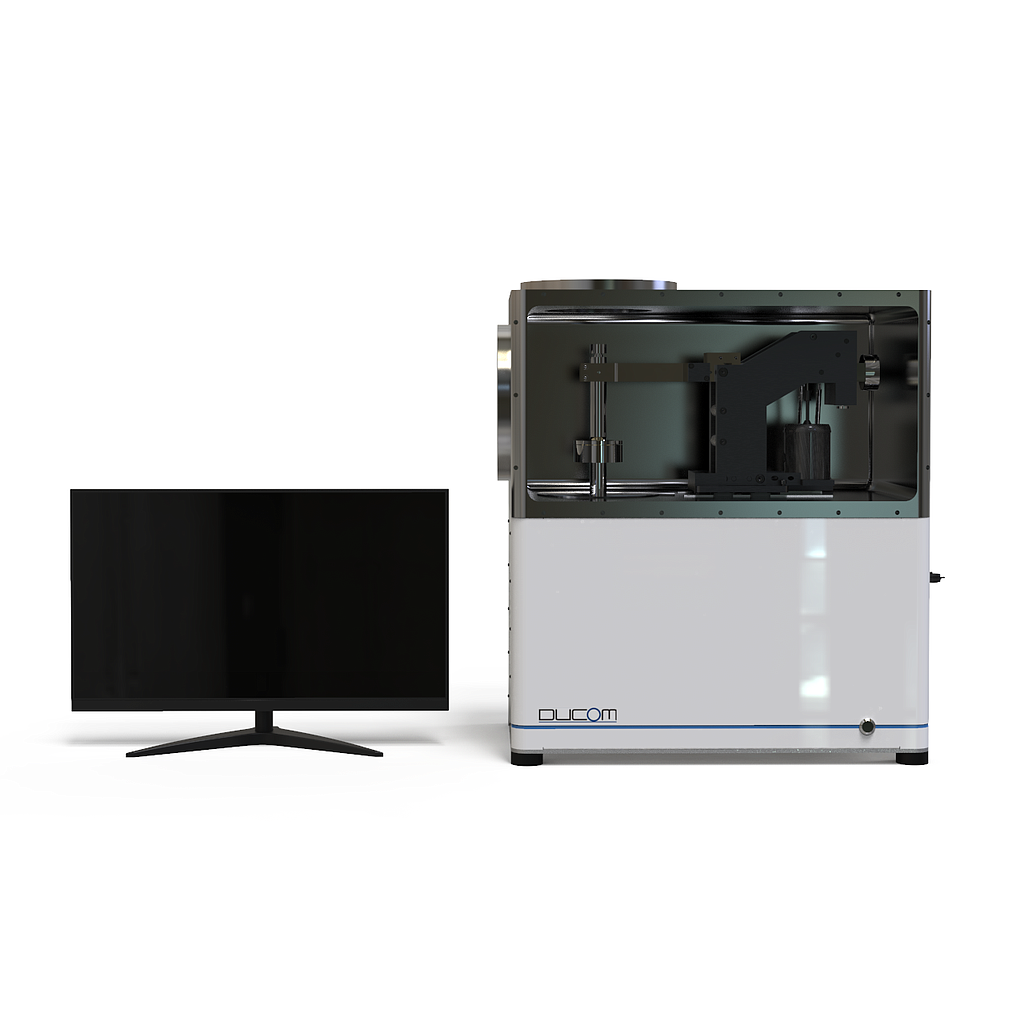

DUCOM VT-3.0 Vacuum Tribometer (3000rpm, 5~180°)
Motion and Loading:
- Rotation:
Standard: 3000 rpm
Option: 5000 rpm
- Angular Reciprocation:
Angle: 5 to 180 degrees
Frequency: 20 Hz Max
Maximum allowable parameters change depending on load, COF, angle and frequency.
- Loading:
Deadweight: 200 N
Automatic: 200 N
(Optional. High frequency feedback controlled servo loop)
Environment:
- Vacuum level: 10-7 torr
- Chamber evacuation time: <45 mins
- Polished chamber
- Viewing and customization ready ports
- Inert gas environment
Sensing:
- High sensitivity capacitive friction sensor
- Ambient temperature sensor
- Sample temperature sensor
- Vacuum level sensor
Standard Options:
Low Temperature Module
High Temperature Module
Debris Collector
2D and 3D Imaging
Special / Custom Options:
Horizontally orientated test setup
Independently controlled disk and pin heating
Extra large diameter disk for increased sliding velocity
