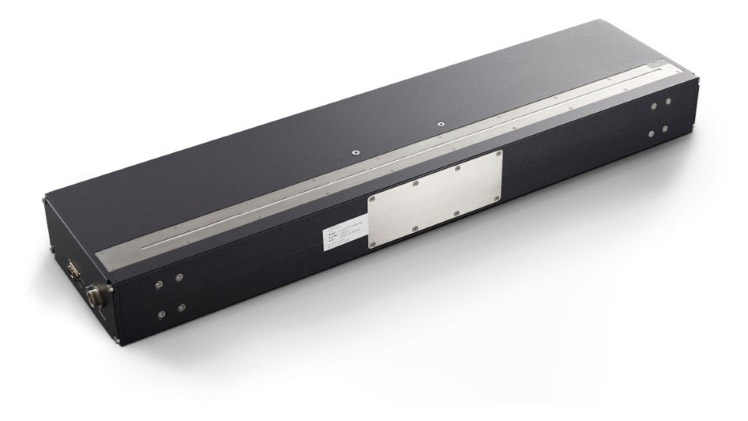

DT Detection Technology X-Scan P0108 ຕວດຈັບອາເລັຍສອງພະລັງງານ X-ray ແບບເສັ້ນສົງ (512/614/820mm, 0.72 x 0.8 mm)
X-ray tube voltage Vp range : 40-110 kVp
Scintillator material : Low energy: Phosphor screen; High energy: Pixelated ceramic
Active area length : 512/614/820mm
Number of pixels : 1280 to 2048
Pixel pitch (spacing) : 0.8 mm
Pixel size (photodiode) : 0.72 x 0.8 mm
Maximum scanning speed : 400 cm/s
Integration time range : 0.2–128 ms
A/D conversion resolution : 16 bits
Dynamic range : up to 16000:1
Sensitivity settings : 8 levels, Charge range 0.75 to 10.5 pC/Line, Separate setting for Low/High and for each sensor element.
Interface : Gigabit Ethernet or Camera Link
Linearity : > 99%
Operational voltage and power : +12V or +24V DC, 25 W Max
IP classification : IP50
Operational temperature and humidity : 0–40°C, 30–80% RH
Storage temperature: -10 … +50°C
On-board calibration : Yes
Bad pixel correction : Yes
Pixel Binning : Yes, up to 4x
Line averaging and summing : Yes, up to 256x
Power on time recording : Up to 100,000 hours recording
Remote firmware update : Yes
LE/HE registration SDK : Yes
EMC and RoHS compliance: Yes
