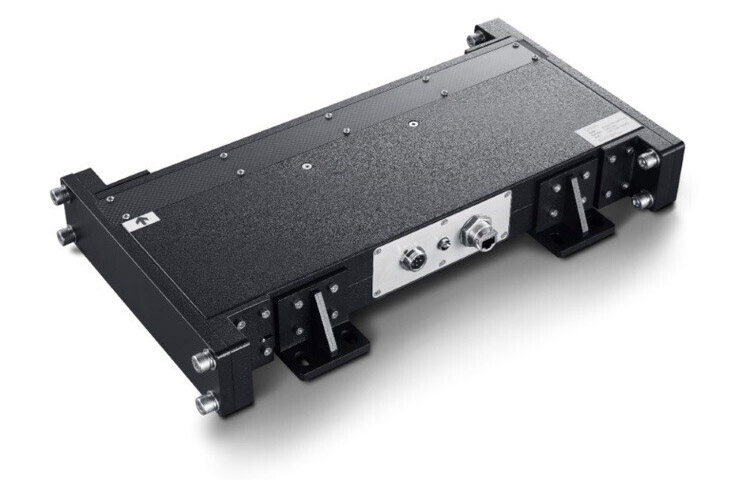

DT Detection Technology X-Scan M01B ອາເລຍຕເກຕເຕີສາຍສັນຕັດແບບແມ່ນຕົວ (410 mm / 614 mm / 820mm)
X-ray tube voltage range : 450 kVp-9 MeV
Active area length options per module : 410 mm / 614 mm / 820mm
Pixel pitch (spacing) : 0.2mm and 0.4 mm
Scintillator material : Segmented CdWO4
Scintillator thickness : 10 mm
Pixel height (scintillator) : 1.57 mm
Pixel width (scintillator) : 0.1 mm / 0.2 mm
Maximum scanning speed : 200 cm/s
Minimum integration time per line : 0.2 ms
Maximum integration time per line : 128 ms, 32 s with summing
A/D resolution : 16 bits
Dynamic range at lowest sensitivity : > 16000:1
Sensitivity settings : 8 levels, Charge range 0.75 to 10.5 pC/Line
Data digital interface : 16 bits
Interface : Gigabit Ethernet with UDP protocol
Linearity : > 99 %
Operational voltage : +10.8 V DC… +26 V DC
Power consumption : 40 W Max/module
Operational temperature : 0–40°C
Operational humidity : 30–80%
Storage temperature: -10–+50°C
On-board calibration : Yes
Pixel discontinuity correction: Yes
Bad pixel correction: Yes
Pixel Binning : Yes, up to 4x (equalling to 1.6mm pitch)
Line averaging and summing : Yes, up to 256x
Power on time recording : Up to 100,000 hours recording
EMC compliance : Yes
RoHS compliance : Yes
IP classification : IP50
