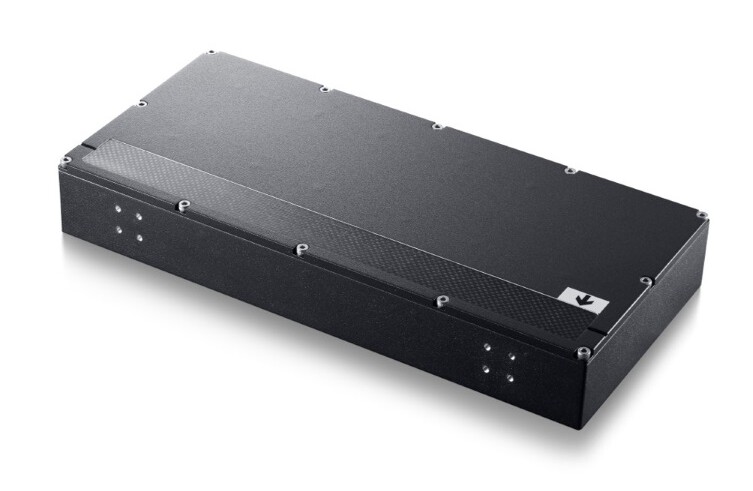

DT Detection Technology X-Scan F0108 ຕວດສອບອາເລຍລິເນຍລະບົບມົດູລາ (307, 410, 512, 614, 717, 922, 1229 mm; 384–2048 pixels)
X-ray tube voltage Vp range : 40–160kVp;
Scintillator material : GOS screen
Active area lengths, single module : 307, 410, 512, 614, 717, 922, 1229 mm
Total pixel number per module : 384–2048
Maximum number of modules and active length with one XGCU EX-PH control unit: 5 modules, 8190 mm
Pixel size (photodiode) : 0.7 x 0.8 mm
Scanning speed:
Maximum scanning speed : 7 m/s
Integration time range : 0.10…128 ms
Line averaging and summing : Yes, up to 256x
Pixel binning : Yes. 1, 2 or 4 pixels
A/D resolution : 16 bits
Overall X-ray response non-uniformity, dark offset subtracted at detector level : < ±25 %
X-ray response linearity : >99 %
Max number of dead pixels : Zero, no dead pixels
Channel electronic crosstalk: < 0.5 %
Dynamic range : >16 000:1 depending on sensitivity settings
Sensitivity settings : Range 0.875..12.25 pC with 1.75 pC steps (8 settings)
Interface, detector module to control unit : X-Link protocol in Cat5e cable with RJ45 connectors
Interface, control unit to host computer : Gigabit Ethernet, UDP protocol
EMC compliance : EN61326-1, EN61000-3-2, EN61000-3-3
IP classification : IP55
RoHS compliance: Yes
Operational voltage and power : 24 VDC, max 35 W per module. Industrial power supply units available from DT
Operational temperature and humidity : 0–40 °C, 30–80 % (non-condensing)
Storage temperature : -10–50 °C
Lifetime under X-ray : typical 100 kGy
Weight per module : 5 to 40 kg
Power on time recording : Yes, up to 100 000 hours
