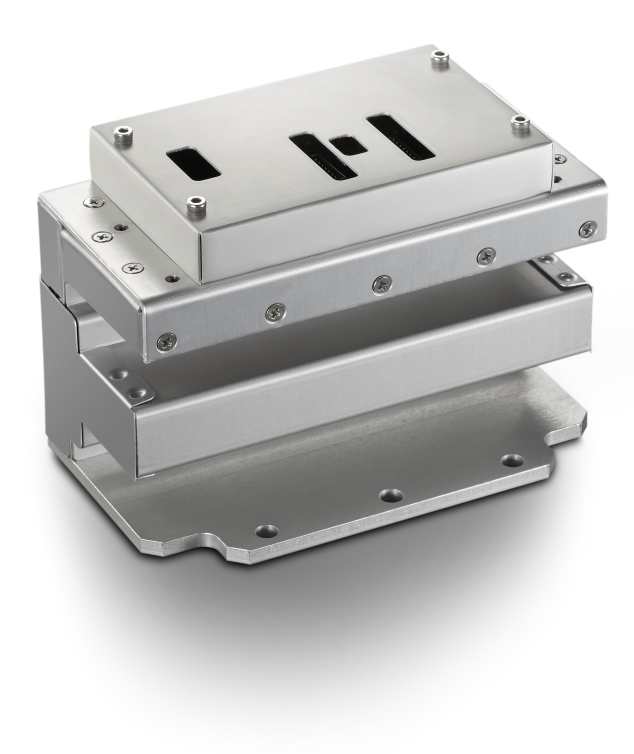

DT Detection Technology X-Scan D01920147B ໂມດູນກວດຈຸດພະລັງງານສູງ
Scintillator material : Cesium Iodide, CsI(Tl)
Number of row(s) per DM : 2
Number of read-out channels per DM : 32(16 pixels per row x 2)
Max DM quantity : 16 DMs per segment, 5 segments per X-GCU max 80 DMs total per system
Max number of read-out channels for the system @ max 80 DMs : 2560
Pixel pitch : 9.2 mm
Pixel height : 7.1 mm
Pixel width: 8.6 mm
Pixel absorption length : 40 mm
Row pitch: 8.0 mm
Max scanning speed : 1,000 lines/sec (1 kHz pulse rate)
Min integration time (per pulse) : 100 us
Number of sensitivity setting steps : 63
Min range : 6 pC/pixel
Max range : 378 pC/pixel
Range step: 6 pC/pixel
A/D resolution : 18-bits, Typical dynamic range >14 bits
Linearity: > 99.9 %
Operational voltage : 12 to 24 V DC
Power consumption per DM : DM 1.2 W/module (typ), X-GCU EX-H: 3.2 W (typ)
Weight : DM: 1.3 kg, X-GCU EX-H: 1kg
