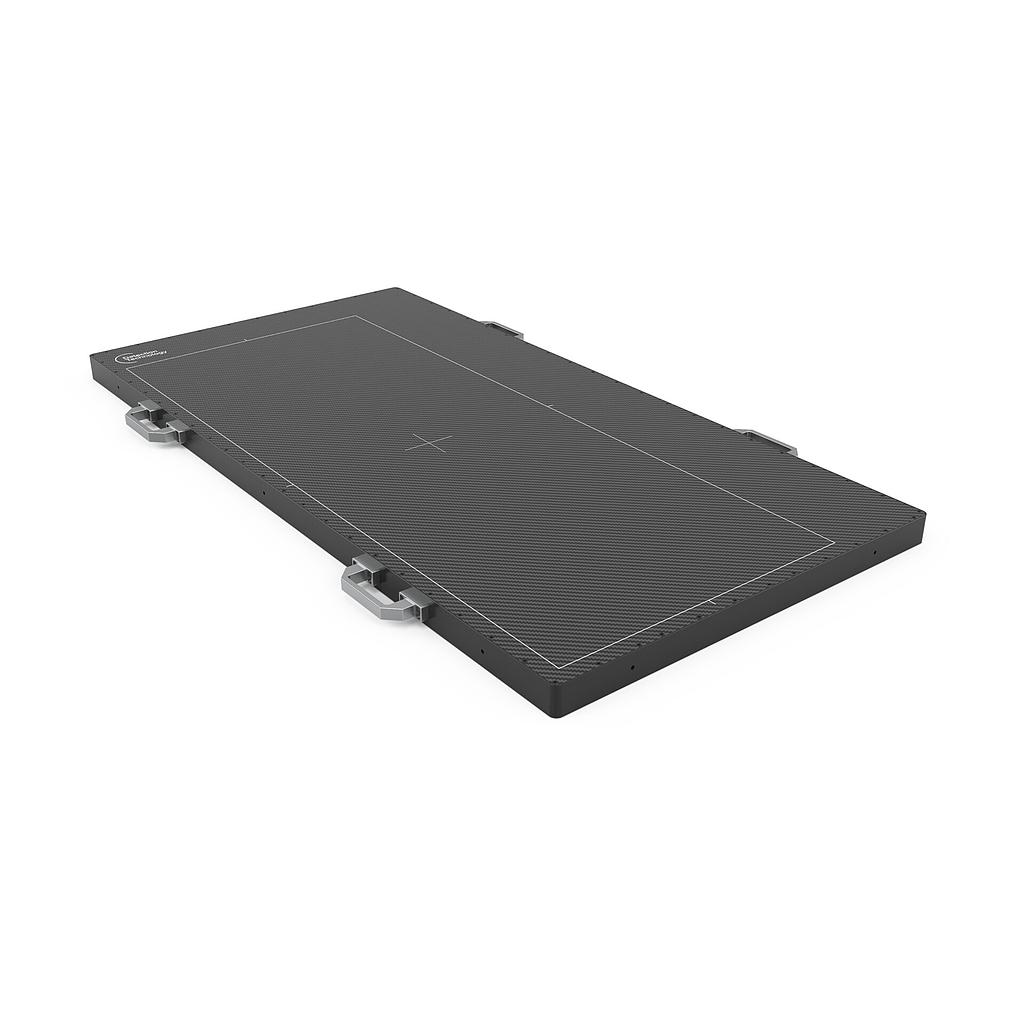

DT Detection Technology X-Panel 43108a FQI-GHC-TG-H EU ຕວດຈຳແບບແຜ່ນລະດັບແກ້ວ (Single-glass a-Si-TFT, 3072 x 7680, 140 μm)

Technology:

Sensor: Single-glass a-Si-TFT

Scintillator: DRZ-High with Cu filter

Active area: 430 x 1075 mm

Pixel matrix: 3072 x 7680

Pixel pitch: 140 μm

ADC: 16 bits

Interface:

Data interface: 10 G Ethernet

Max frame rate: 10 fps (1×1) / 20 fps (2×2)

Mechanics:

Dimensions (H x W x D): 1200 x 610 x 40 mm

Weight: 30 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IP65

Power:

Dissipation: 35 W

Applications: High Energy NDT with Linear Accelerator
