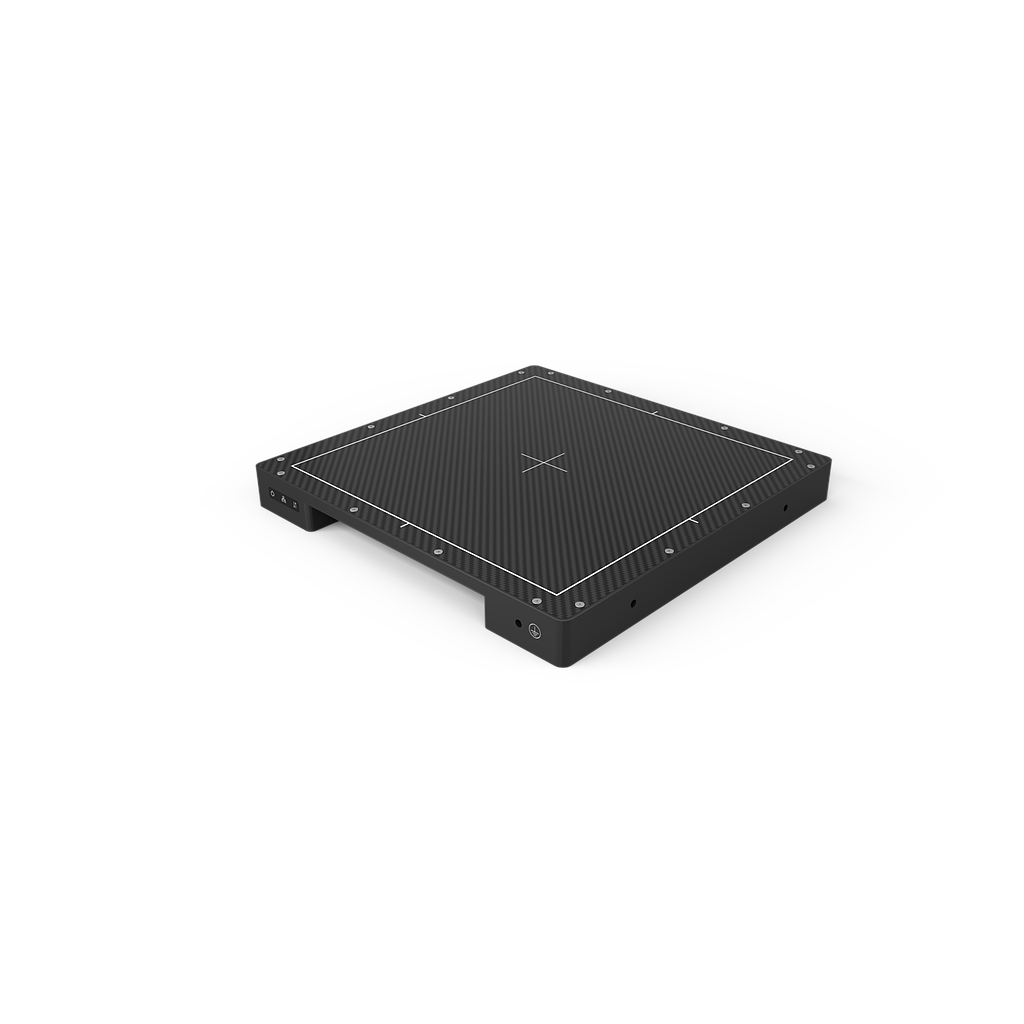

DT Detection Technology X-Panel 2323z FDM-CSV-TG ຕວດຈຳແບບແຜ່ນລະດັບແກ້ວ (IGZO-TFT, 1536 x 1536, 148 µm)

Technology:

Sensor: IGZO-TFT

Scintillator: CsI

Active area: 227 x 227 mm

Pixel matrix: 1536 x 1536

Pixel pitch: 148 µm

ADC: 16 bits

Interface:

Data interface: 10 G Ethernet

Max frame rate: 40 fps (1×1) / 80 fps (2×2)

Mechanics:

Dimensions (H x W x D): 268 x 265 x 28 mm

Weight: 2.8 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IPX0

Power:

Dissipation: 13 W

Applications: Surgical, C-arm
