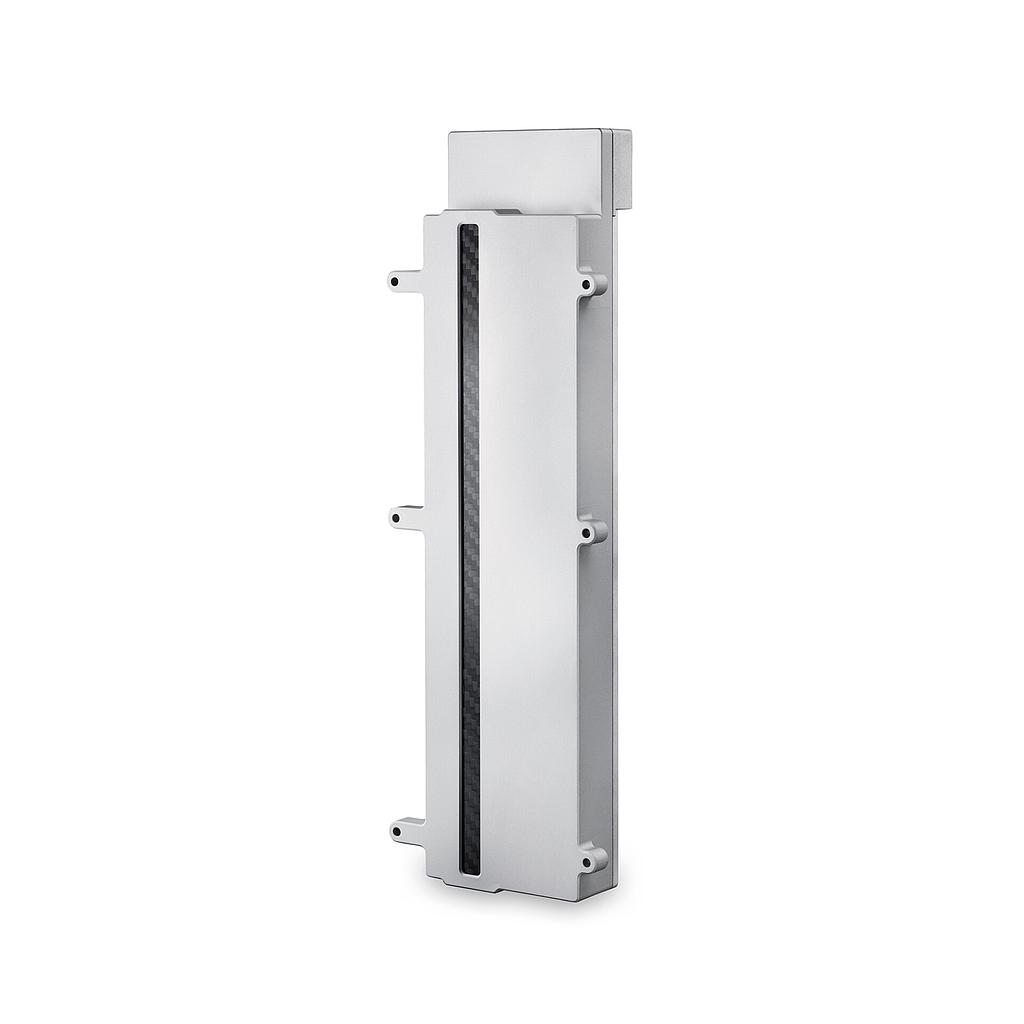

DT Detection Technology X-Panel 2301c FXM ຕວດຈຳແບບແຜ່ນລະດັບແກ້ວ (CMOS, 2332 x 72, 100 µm)

Technology:

Sensor: CMOS

Scintillator: CsI

Active area: 233 x 7

Pixel matrix: 2332 x 72

Pixel pitch: 100 µm

ADC: 14 bits

Interface:

Data interface: Gigabit ethernet

Max frame rate: Up to 330 fps

Mechanics:

Dimensions (H x W x D): 272 x 90 x 32 mm

Weight: 1.0 kg

Environmental:

Temperature: 10~40°C (operating); -10~50°C (storage)

Humidity: 20~60% RH (non-condensing)

IP rating: IP40

Power:

Dissipation: <10 W

Applications: Dental Cephalometric
