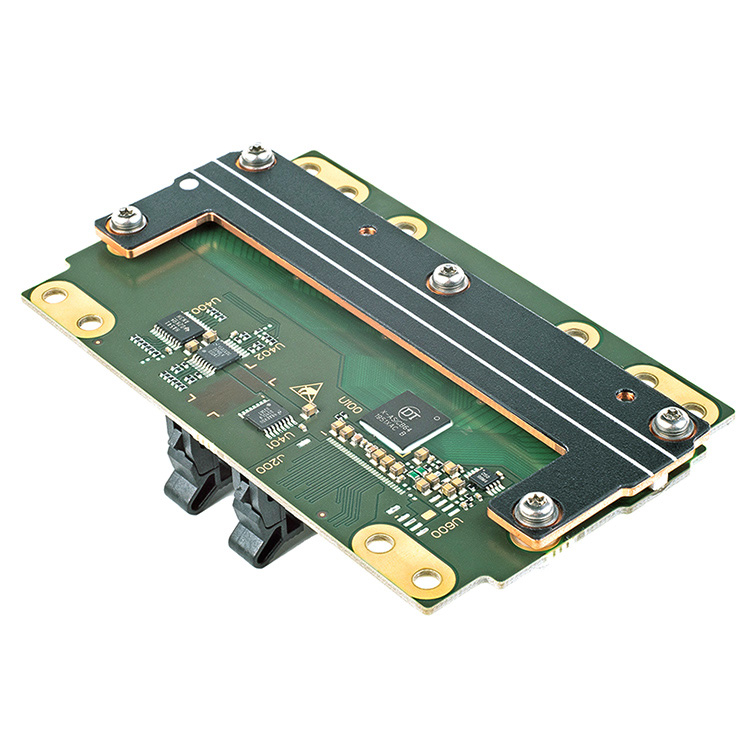

DT Detection Technology X-Card D021606414E ບົດກວດຈຳເລີຍ Dual-energy X-ray (13000:1 @ 2 pF, 20000:1 @ 10 pF)
X-ray sensor: DT proprietary dual-energy structure
Number of pixels: LE 64 pixels, HE 64 pixels
Scintillator material : Ceramic GOS
Dynamic range: 13000:1 @ 2 pF, 20000:1 @ 10 pF
A/D resolution: 16 bits
Integration time range: 1.27 ms to 25 ms
Sensitivity range: 0.25 pF—31.75 pF, adjustable with 0.25pF steps
Pixel pitch: 1.575 mm
Pixel active area width : 1.2 mm
Pixel active area scanning direction: 2.0 mm
Scintillator alignment tolerance to reference hole : ±0.4 mm
X-ray response non-uniformity, pixel to pixel: -15% to +10%
Dark offset non-uniformity, pixel to pixel: -15% to +10%
X-ray response non-uniformity, card to card : -15% to +15%
Radiation hardness: Lifetime dose max 100 kGy
Mechanical length: 101.6 mm
Mechanical width: 59.5 mm
Mechanical heigh: 26.5 mm
Weight: 62.5 g
