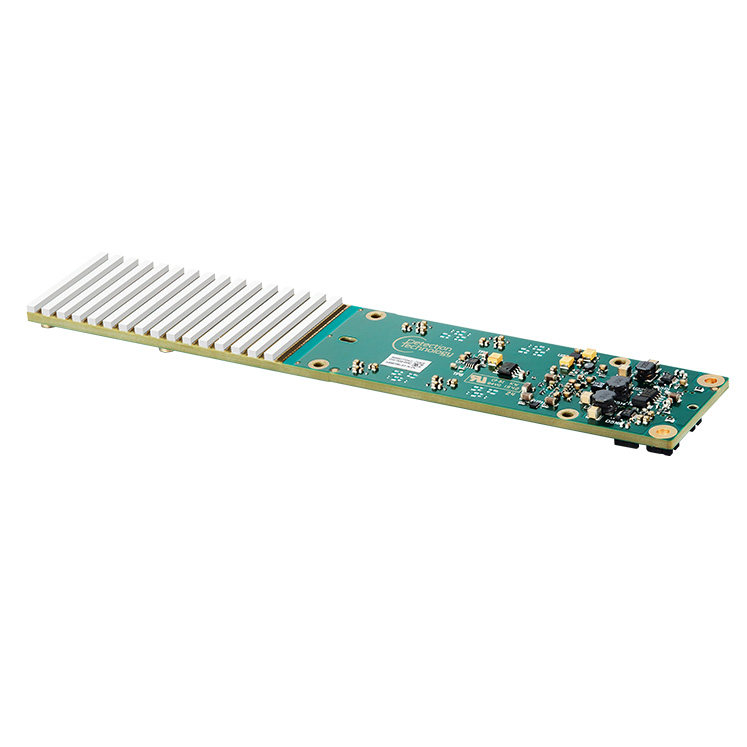

DT Detection Technology SDBB-ST16SE ລະບົບຍ່ອຍຕິດຕາມ CT ພ້ອມໃຊ້
Pixel size in X-axis (mm) : 2.5
Pixel size in Z-axis (mm): 2.75
Pixel active area (PD) (mm): 2.3 x 2.55
Row pitch : 5.5 mm
Scintillator material: 1.8 mm ceramic GOS
Mechanical width (X-axis): 40.3 mm ± 0.1 mm
Mechanical length (Z-axis) : 208.4 mm ± 0.2 mm
Mechanical height (Y-axis) : <15 mm
Number of pixels: 256
Number of pixels in X-axis: 16
Number of pixels in Z-axis: 16
Minimum view time : 350 us
A/D resolution : 20 bits with 16-bit data transmission
Sensitivity range : 0.25 pF—31.75 pF, 127 steps
Interface to control unit : X-Link, 14-pin connector
X-ray response non-uniformity, within row: -15% ~+15%
X-ray response non-uniformity, row to row : -20% ~+20%
X-ray response non-uniformity, detector to detector : -20% ~+20%
Dynamic range : >10000:1 @ 6 pF
Operation voltage : +24 VDC
Power consumption 2.4 W (typical) : 3.2 W (typical)
Weight : 250 g
G-force : Max 20 G
Radiation hardness: Signal drop <40% @ 100 kGy, 160–180 kVp; For electronics, the maximum allowed X-ray dose after shielding: 200 Gy:
Operating temperature : 0 °C—+50 °C
Operating humidity : 5%—85% RH (non-condensing)
Storage temperature : -40 °C—+60 °C
Storage humidity: 5%—95% RH (non-condensing)
