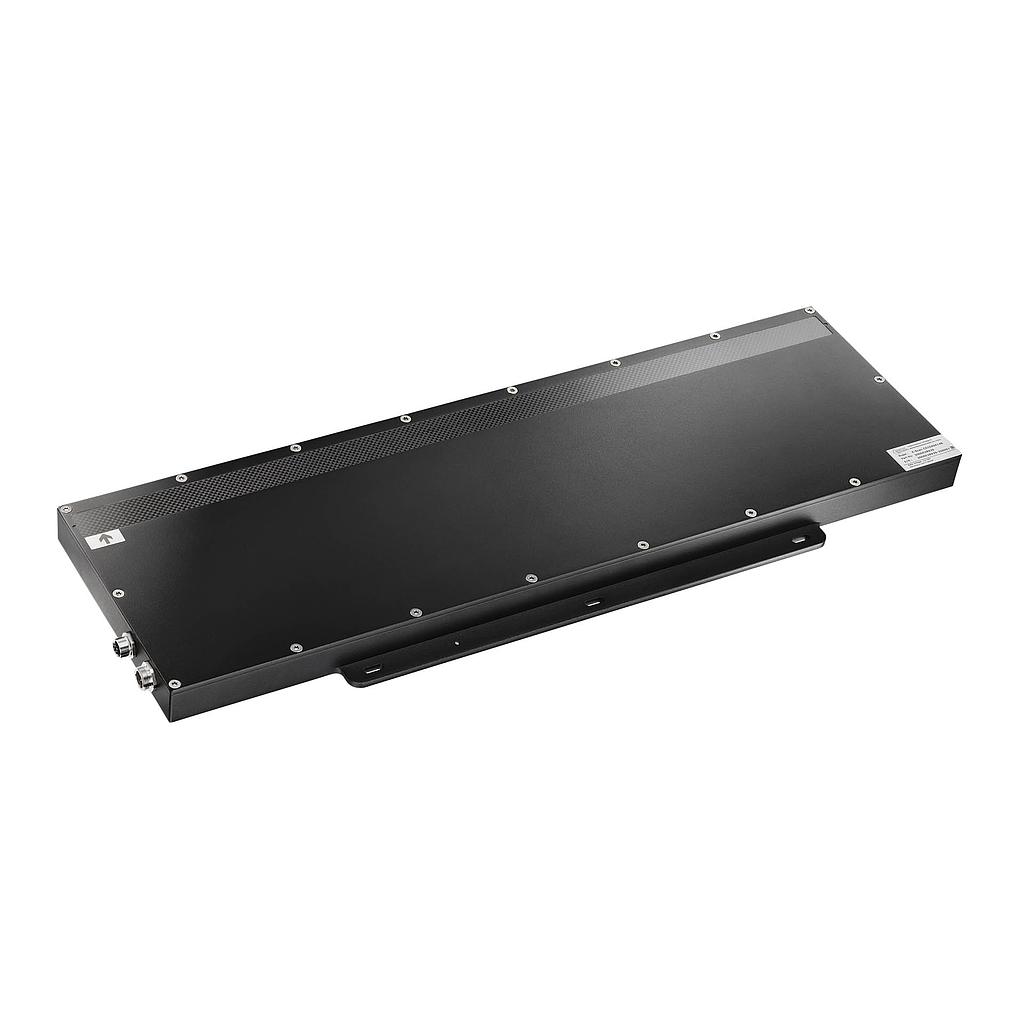

DT Detection Technology C0108 ກ້ອງຖ່າຍຮູບແບບເສັ້ນ X-ray ດິຈິຕອນ (40–160 kVp; 307, 512 mm)
X-ray tube voltage Vp range : 40–160 kVp
Scintillator material : GOS screen
Active area lengths, single module : 307, 512 mm
Total pixel number per module : 384,640
Pixel size (photodiode): 0.7 x 0.8 mm
Scanning speed:
Maximum scanning speed : 6 m/s
Integration time range: 0.12 - 100 ms
Line averaging and summing : Yes, up to 256x
Pixel binning : Yes, 1, 2 or 4 pixels
A/D resolution : 16 bits
Overall X-ray response non-uniformity, dark offset subtracted at detector level : +/- 15%
X-ray response linearity: >99%
Max number of dead pixels : Zero, no dead pixels
Channel electronic crosstalk : < 0.5%
Dynamic range : Typically >16 000:1 depending on sensitivity settings
Sensitivity settings 0.75 - 10.5 pC range; 8 settings; 1.5 pC / step, except between setting 7-8, which is 0.75 pC:
Interface IP67 M12 X-code connector:
EMC compliance : EMC compliance EN61326-1, EN61000-3-2, EN61000-3-3
Ingress protection class : IP67
RoHS compliance : Yes
Operational voltage and power : 24 VDC, max 35 W per module; Industrial power supply units available from DT
Operational temperature and humidity : 0–50 °C, 30–93% (non-condensing)
Storage temperature : -10–60 °C
Lifetime under X-ray : Typically 100 kGy
Weight per module: 5 to 10 kg
Power on time recording : Yes, up to 100,000 hours
