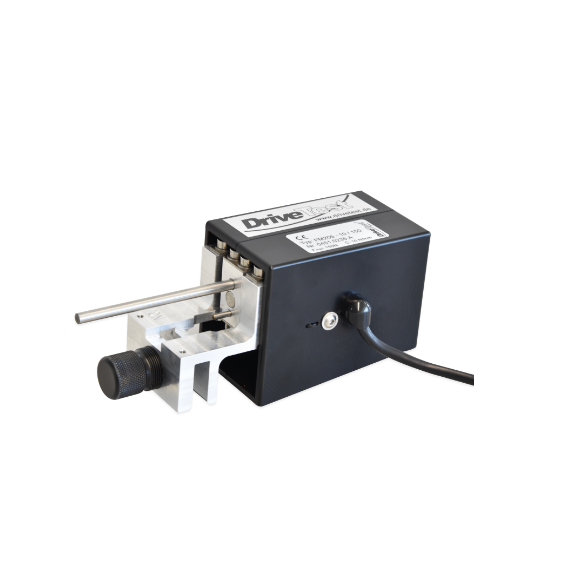

- FM205/2:
Application of force: on one side
Measuring range: 0 ... 50 N
Accuracy: +/– 3 N (0–100 N) or +/– 3 % (>100 N)
Spring stiffness: 2 N/mm
Gap width: Fmax. 5 mm / 0.19"
Area: 5 x 80 mm / 0.19 x 3.1"
Force sensor: strain gauge bridge
Cable length: 1.5 m / 4.9 ft
Dimensions: 175 x 75 x 57 mm / 6.8 x 2.9 x 2.2"
Weight: ca. 400 g / 14 oz
- Display device SEB2.2:
Display device SEB2.2 data logger unit with LCD display and LED status indicators, Control button, USB interface
Optional PC-controlled measurement
Lithium polymer battery
Real time clock
Memory for 100 measurements
Sensor and PC interface
Peak value display and effective power display
Rating display i. O./n. i. O.
- Spacers:
Complete set for all opening widths according to EN 14752:2015
Automatic detection of the spacers used
Automatic limit value adjustment according to opening width
Easy to use, quick assembly without tools
Robust design, low weight, POM
Together with BIA 600 sensor, SEB2 in a carrying case
- PC evaluation software PinchPilot:
Multilingual (DE, EN, IT, FR, ES)
Graphic representation of the force curve
Calculation of the standard-relevant characteristic values
Evaluation according to different guidelines possible
Custom policy adjustable
Log printout
Data export (Excel, CSV, PDF)
Optional measuring point identification
- System requirements software PinchPilot (see tab Software/App)
Delivery Scope:
1 x Closing force transducer FM205/2
1 x Sensor 2N/mm
1 x SEB2.2 indicator
1 x PinchPilot software
1 x ISO calibration certificate
