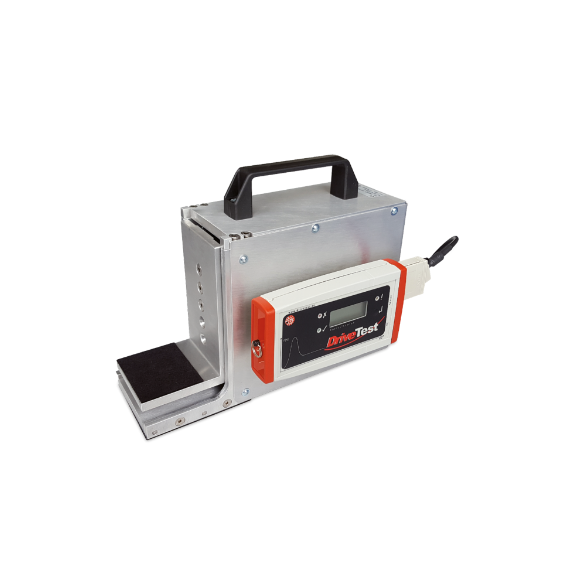

-FM202:
Application of force:on one side
Measuring range: 0 ... 600 N
Accuracy: +/– 3 N (0–100 N) +/– 3 % (>100 N)
Spring rate: 10 N/mm
Gap width: 40 mm / 1.5" minimum
Area: 80 x 80 mm / 3.1 x 3.1"
Measuring principle: DMS bridge
Dimensions: 100 x 300 x 190 mm / 3.9 x 11.8 x 7.4"
Weight: 4.2kg / 9.2 lb
- Display device SEB2:
Data logger unit with LCD display and LED status indicators, control button, serial interface
Optional PC-controlled measurement
9 V battery supply
Real time clock
Memory for 100 measurements
Sensor and PC interface
Peak value display and effective power display
Rating display i. O./n. i. O.
- PC evaluation software PinchPilot:
Multilingual (DE, EN, IT, FR, ES)
Graphic representation of the force curve
Calculation of important parameters
Evaluation according to different guidelines (standards)
Possibility of entering self-defined guidelines
Log printout
Data export (Excel, CSV, PDF)
- System requirements software PinchPilot (see tab Software/App)
Delivery Scope:
1 x Closing Force Measuring Device FM202
1 x Display device SEB2 separate measured value acquisition module with LCD display, LED display, membrane key and serial interface
1 x 9 V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate
