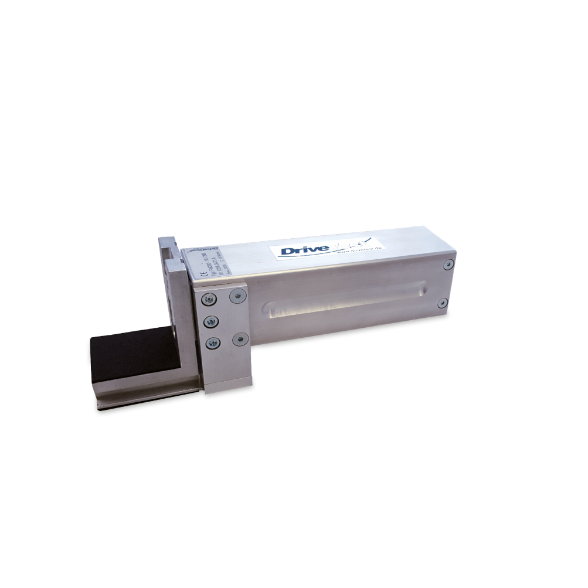

-FM 200/10:
Measuring range: up to 300 N
Accuracy: +/– 3 N or 3% of reading
Stiffness: 10 N/mm
Gap width: minimum 4 mm / 0.15"
Area: 50 x 50 mm / 1.9 x 1.9"
Measuring principle: DMS transducer
Dimensions: 240 x 85 x 60 mm / 9.4 x 3.3 x 2.3"
Weight: 1.3 kg / 2.8 lb
- Display device SEB2:
Data logger unit with LCD display and LED status indicators, control button, serial interface
Optional PC-controlled measurement
9 V battery supply
Real time clock
Memory for 100 measurements
Sensor and PC interface
Peak value display and effective power display
Rating display i. O./n. i. O.
- PC evaluation software PinchPilot:
Multilingual (DE, EN, IT, FR, ES)
Graphic representation of the force curve
Calculation of important parameters
Evaluation according to different guidelines (standards)
Possibility of entering self-defined guidelines
Log printout
Data export (Excel, CSV, PDF)
- System requirements software PinchPilot (see tab Software/App)
Delivery Scope:
1 x Closing Force Transducer FM200/10
1 x Separate measured value acquisition module (SEB2 display device) with LCD display, LED display, membrane button and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate
