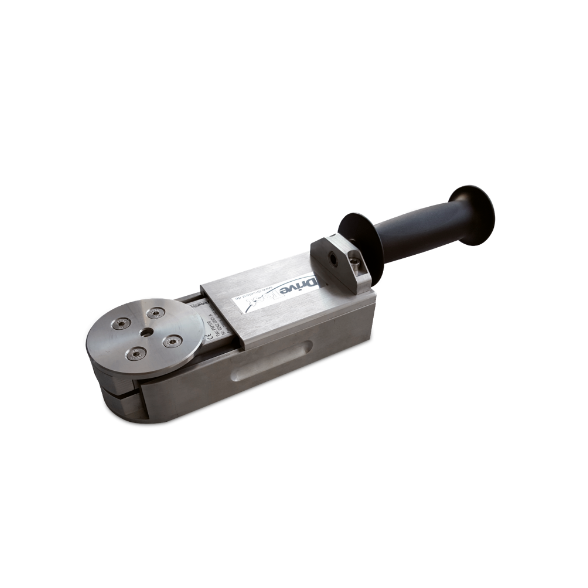

-FM 100:
Measuring range: 0 ... 2000 N
Accuracy: +/– 3 N or 3 % of reading
Resolution: 1 N
Stiffness: 500 N/mm
Gap width: 50 mm / 1.9"
Diameter: 80 mm / 3.1"
Measuring principle: DMS transducer
Memory: 80 measurements
Acquisition frequency/rate: 500 Hz / 2 ms
Power supply SEB2: battery 9 V block, e.g. 6LR61
Battery voltage monitoring: yes
Environmental conditions:
Operating temperature range: -10 to +40 °C / 14 to 104 °F
Storage temperature range: -40 to +50 °C / -40 to 122 °F
Humidity: max. 90% rel.H, non-condensing
Dimensions: 210 x 80 x 50 mm / 8.2 x 3.1 x 1.9"
Weight: 2.1kg / 4.6 lb
- Display device SEB2:
Data logger unit with LCD display and LED status indicators, control button, serial interface
Optional PC-controlled measurement
9 V battery supply
Real time clock
Memory for 100 measurements
Sensor and PC interface
Peak value display and effective power display
Rating display i. O./n. i. O.
- PC evaluation software PinchPilot:
Multilingual (DE, EN, IT, FR, ES)
Graphic representation of the force curve
Calculation of important parameters
Evaluation according to different guidelines (standards)
Possibility of entering self-defined guidelines
Log printout
Data export (Excel, CSV, PDF)
-System requirements software PinchPilot and App (see tab Software/App)
Delivery Scope:
1 x Closing force transducer FM100 with 2.5 m / 8.2 ft connection cable
1 x Separate measured value acquisition module (SEB2 display device) with LCD display, LED display, Membrane button and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate
