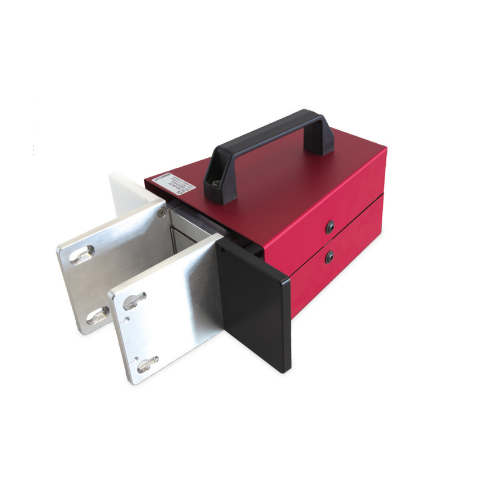

- BIA600 BT:
Application of force: on both sides
Measuring range: 0 ... 700 N
Accuracy:
+/– 3 N (0–100 N)
+/– 3 % (>100 N)
Spring rate: 10 N/mm
Opening width: 90 mm / 3.5"
Area: 100 x 100 mm / 3.9 x 3.9"
Force sensor: DMS bridge
Dimensions: 320 x 250 x 110 mm / 12.5 x 9.8 x 4.3"
Weight: 3.0kg / 6.6 lb
- Spacers:
Complete set for all opening widths according to EN 14752:2015
Automatic detection of the spacers used
Automatic limit value adjustment according to opening width
Easy to use, quick assembly without tools
Robust design, low weight, POM
Together with BIA 600 sensor, SEB2 in a carrying case
PC evaluation software PinchPilot
Multilingual (DE, EN, IT, FR, ES)
Graphic representation of the force curve
Calculation of the standard-relevant characteristic values
Evaluation according to different guidelines possible
Custom policy adjustable
Log printout
Data export (Excel, CSV, PDF)
Optional measuring point identification
Force Meter App downloadable from Google Play Store
Force Meter – easy-to-use app with automatic guidelines and standards updates
Time saving - immediate feedback on the measurement result including simpler report generation
Paperless office - reduces paper and the associated costs and protects the environment
Can be used individually - integration of the customer's signature possible
- System requirements software PinchPilot and App (see tab Software/App)
Delivery Scope:
1 x Closing force measuring device BIA-600 BT
1 x Spacer (4 pieces) according to EN 14752:2015
1 x App Force Meter available for download in the Google Play Store
1 x Software PinchPilot (USB stick)
1 x USB Cable
1 x Manual
1 x Transport case with foam insert
1 x ISO calibration certificate
