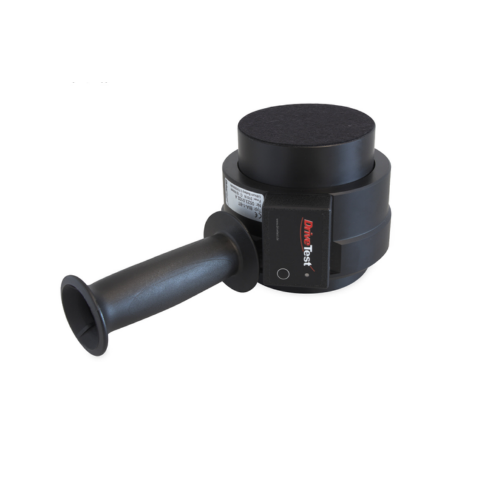

- BIA-1 BT:
Measuring range: 25 ... 310 N
Accuracy: +/– 3 N or 3 % of reading
Stiffness: 10 N/mm
Resolution: 1 N
Gap width: 115 mm / 4.5"
Diameter: 100 mm / 3.9"
Measuring principle: DMS transducer
Acquisition frequency / rate: 250 Hz / 4 ms
Power supply: 5 V DC via USB max. 500 mA
Lithium polymer battery 350 mAh
Battery life under full load: more than 10 hours (continuous measurement)
Environmental conditions:
Operating temperature range: -10 to +40 °C / 14 to 104 °F
Storage temperature range:
possible: -40 to +50 °C / -40 to 122 °F
ideal: +10 to +25 °C / 50 to 77 °F
Humidity: max. 90% relative humidity, non-condensing
Dimensions: 260 x 130 x 115 mm / 10.2 x 5.1 x 4.5"
Weight: 2.1 kg / 4.6 lb
- PC evaluation software PinchPilot:
Multilingual (DE, EN, IT, FR, ES)
Graphic representation of the force curve
Calculation of important parameters
Evaluation according to different guidelines (standards)
Possibility of entering self-defined guidelines
Log printout
Data export (Excel, CSV, PDF)
- Force Meter App downloadable from Google Play Store:
Force Meter – easy-to-use app with automatic guidelines and standards updates
Time saving - immediate feedback on the measurement result including simpler report generation
Paperless office - reduces paper and the associated costs and protects the environment
Can be used individually - integration of the customer's signature possible
- System requirements software PinchPilot and App (see tab Software/App)
Delivery Scope:
1 x Closing force transducer BIA-1 BT
1 x App Force Meter available for download in the Google Play Store
1 x Software PinchPilot (USB stick)
1 x USB Cable
1 x Manual
1 x Transport case with foam insert
1 x ISO calibration certificate
