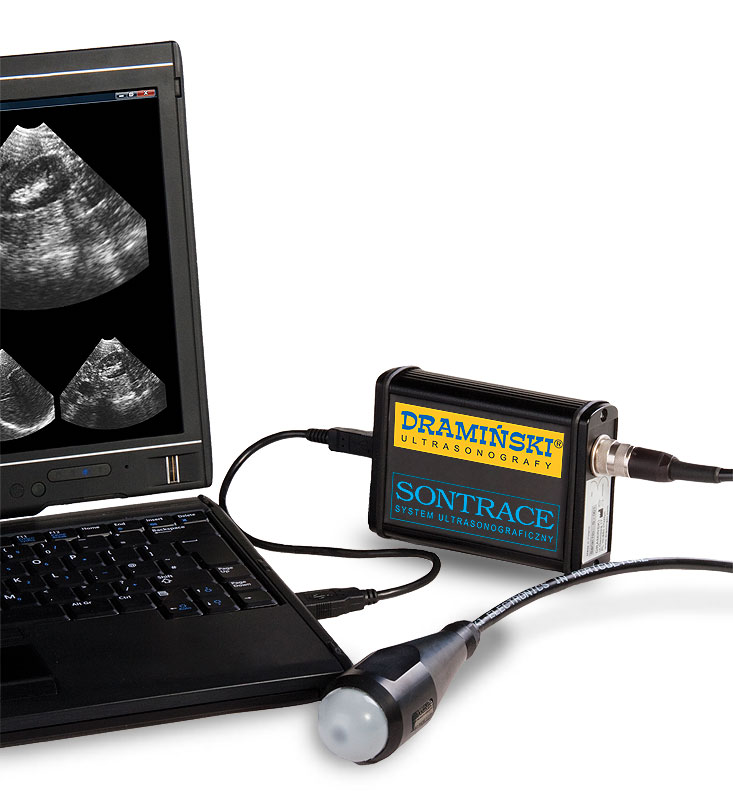

DRAMIŃSKI SonTrace system has been designed for budding veterinary practitioners, who need a portable and economic ultrasound scanner. SonTrace is a solution that allows for building one’s own ultrasound scanner based on his or her own notebook or PC. The system can be carried in a laptop bag. It is powered by a computer USB2.0 At the same time, the ultrasound scanner may be used in the office as a stationary device.
Why should you have DRAMIŃSKI SonTrace?
- An economic solution for budding veterinary practitioners or students interested in ultrasonography.
- Functional and easy to use software with a wide range of options available (dimensioning, cine loop, saving diagnostic images, etc.).
- A universal 5.0 MHz broadband probe (sector, mechanical probe) for abdominal examinations.
- Fully mobile ultrasound system that can can always have with you.
The set includes:
- Sontrace – electronic probe operating system that works with a computer via USB
- 5.0MHz sector mechanical probe or an optional 7.5MHz probe (abdominal)
- a CD with Dramiński SonTrace System software
- transport packaging
- USB connecting cable
- manual
| Dimensions | 11.5 x 8.0 x 3.5 cm | |
| Unit weight | 250 g without probe | |
| Imaging mode | real-time imaging: B Mode, B+B Mode B+M Mode | |
| Cine loop | max 256 frames (ca. 20 sec.) | |
| Frequency and type of probes | Mechanical, sector, abdominal 5.0 MHz Mechanical, sector, abdominal 7.5 MHz | |
| Penetration depth (depending on the probe type) | 7, 10, 12, 15, 20 cm | |
| Penetration angle | 90° for abdominal probes | |
| Function controls | Computer keyboard (keyboard shortcuts) Mouse cursor (laptop touchpad or a mouse) | |
| Image memory capacity | Limited by computer HDD disk capacity | |
| Power supply | Computer USB2.0 port, 5 V | |
| Operating temperature range | + 5°C to + 40°C | |
| Storage temperature range | 0°C to + 45°C |
