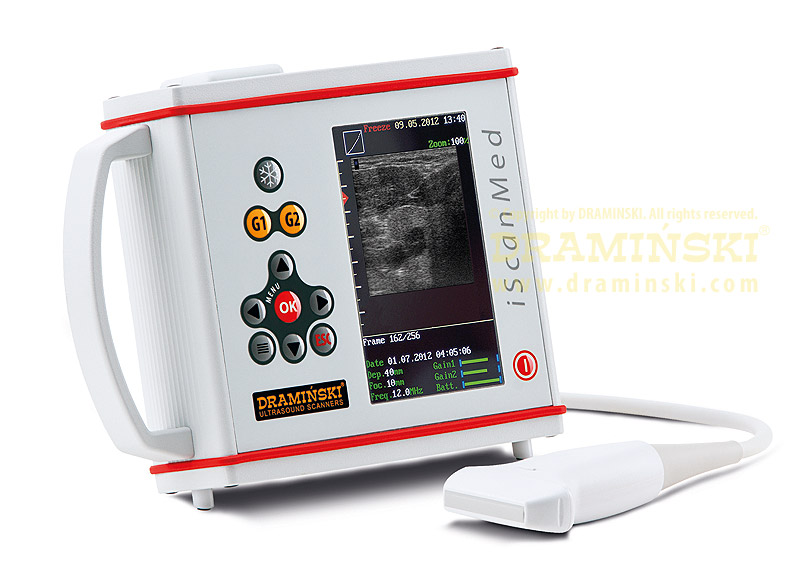

DRAMINSKI iScanMed Ultrasound Scanner
Main attributes of the iScanMed ultrasound
Perfect image
Fully digital imaging technology (B, B+B, B+M). Excellent for accurate diagnostics. Presets for various diagnostic and treatment activities – injections, evaluation of motor organs, small organs, lung points, optic nerve.
Cine loop record
Owing to a unique cine loop technology you can play 20-second video sequences and carefully examine the organ.
Portable ultrasound
Very light, fully mobile and powered by an exceptionally durable battery, iScanMed will give you comfort during many hours of work.
Duraluminium casing
A waterproof case of iScanMed allows for disinfecting the device.
The set includes:
- body with 6-14 MHz probe,
- two packages of external batteries,
- power supply,
- USB cable for data transmission,
- Explorer transport case,
- manual.
Technical data | ||
| Dimensions | 20.5 x 17.0 x 6.0 cm | |
| Unit weight | 1620 g including probe | |
| Battery weight | 280 g | |
| Image presentation (projection) mode | live imaging: B Mode, B+B Mode, B+M Mode | |
| Probe frequency and type | electronic linear 10 MHz (from 6 to 14MHz) | |
| Scanning range | from 0 to 5 cm | |
| Screen | LCD, LED screen, 5.0’’ diagonal | |
| Keyboard | membrane | |
| Cine loop (image sequence) | 256 frames (ca. 20 seconds) | |
| Image memory | 200 images with date, index No. and description | |
| Cine memory | 50 cine loops with date, index No. and description | |
| Transmission to the computer | through the USB2.0 port | |
| Power source | Li-ion battery pack, 14.4 V, 3.1Ah | |
| Continuous operation on fully charged battery | about 5 h | |
| Pack charging time | 2 hrs 30 min | |
| Battery low indicator | automatic – graphic indicator | |
| Working temperature | + 5°C do + 40°C | |
| Storage temperature | 0°C do + 45°C | |
