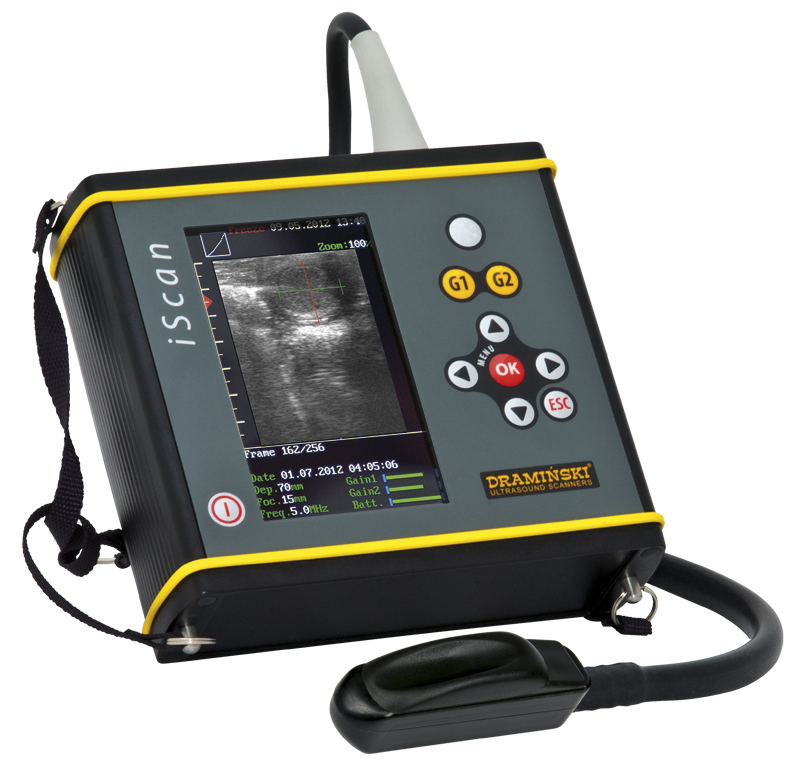

DRAMINSKI iSCAN ເຄື່ອງສະແກນ ultrasound ສັດຕະວະແພດ (with integrated linear, rectal probe, 5.0' LCD, LED display, 2 batteries, 1 shade cover)

Dimensions:17.0 x 17.0 x 6.0 cm

Unit weight:1720 g including probe

Battery weight::280 g

Image presentation (projection) mode:B Mode – live imaging,

B+B Mode (2B Mode – Dual Mode Display),

Probe frequency and type:electronic linear 7.5 MHz (from 4 to 9MHz)

Scanning range:from 4 to 12 cm (for linear probe, rectal use)

ScreenLCD, LED screen, 5.0’’ diagonal

Keyboard:membrane

Cineloop (image sequence):256 frames (ca. 20 seconds)

Image memory:200 images with date, index No. and description

Cine memory:50 cine loops with date, index No. and description

Transmission to the computer:through the USB2.0 port

Power source:Li-ion battery pack, 14.4 V, 3.1Ah

Continuous operation on fully charged battery:about 5 h

Pack charging time:2 hrs 30 min

Battery low indicator:automatic – graphic indicator

Working temperature:+ 5°C do + 40°C

Storage temperature:0°C do + 45°C

The set includes:

scanner’s body with electronic linear, rectal probe,

carrying strap, which allows hanging the device on the neck,

package of external batteries (1 item in a standard version, 2 items in prestige version),

battery charger,

power cable for the charger,

USB cable for data transmission,

shade cover

a bottle of ultrasound gel (in prestige version),

abridged manual,

manual and a programme for data transmission to a PC, recorded on a CD,

Explorer transport case.

A portable, fully digital ultrasound scanner with linear rectal probe. A reliable device for accurate diagnosis of, for instance, full breeding of cows and mares, tendons and horse’s equine eye ball, etc.

Ultrasonography is a dynamically developing and most popular method for imaging of organs and tissues in veterinary medicine. Miniaturisation of electronic systems and efficient power sources enabled Dramiński to design a truly revolutionary ultrasound model for field use. At the designing stage, we took into account most of the needs reported by veterinarians practising in difficult field conditions on a daily basis.

Why should you have DRAMIŃSKI iScan?

• Excellent image quality
  A fully digital imaging technology has been used (B, B+B, B+M) to help in professional and fast imaging of:
  - full breeding of cows and mares,
  - tendons and horse’s equine eye ball,
  - pathological mammary gland,
  - objective assessment of condition of milk cows,
  - other examinations conducted with the use of ultrasound technology, e.g. breeding in other animal species (fish, snakes, alpaca, camels)

•  Small, light and mobile
  By observing the physicians performing field work, we developed a design that involves:
  - small weight of the device, which allows for long-term work in hard conditions,
  - ultra-compact size to help examine without the assistance of other persons,
  - very efficient and easy-to-replace external battery assures non-stop operation.

•  Extremely durable
  In the work of every physician devices need to be resistant to extremely harsh conditions. Therefore, the iScan ultrasound scanner:
  - has a duraluminum, very strong casing,
  - is fully resistant to water and other pollutants and can be washed under running water.

•  High functionality
  - intuitive membrane keyboard,
  - an excellent LCD display with LED backlight, with a very wide viewing angle,
  - a sun visor that enables the user to work even in full sun,
  - clear and user-friendly menu,
  - storage of ultrasound images and video loops (cine loop) in the device’s memory,
  - transmission of saved images and cine loop to a computer via USB2.0.

Owing to the above featuresDramiński iScan gains very positive reviews around the world and is considered a model diagnostic device for work in very harsh conditions.
