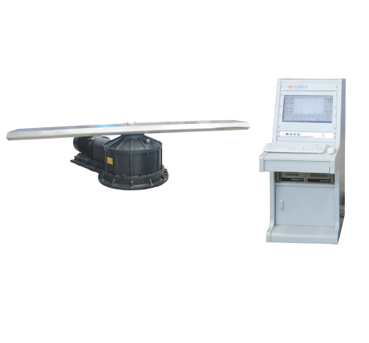

Dongling SY31-200 ເຄື່ອງທົດສອບຄວາມເລັ່ງຄົງທີ່ຂອງສູນ centrifugal (30-700 m/s2, 3000mm)
Max. Load (kg)/ Position: 200x2
Acceleration (m/s2): 30-700
Specimen Size (L×W×H: mm): 700x700x700
Specimen-Installed Radius (mm): 2500
Turning Radius (mm): 3000
Start Time (min): ≤5
Stop Time (min): ≤5
Continuous Working Time (min): 60
Power Consumption (kVA): 90
Dimension (mm): Φ7500
Current Collector (optional): 60 ring 500V 5A
Weight (kg): 8000
Power Supply: Three-phase 380V, 50/60Hz
Measure and Control System: IPC control
Standard: GJB150 GJB360 GB/T2423 MIL-STD-810F IEC68-2-7
Working Environment: Temperature range 0~40°C
Humidity range: ≤80% (non condensing)
Remark: The specimen-installed radius, current collector, and control accuracy can be configured according to relevant standard or the requirements of users.
