Technical Parameter
● Input voltage: single-phase, three-wire 220V±10% 50Hz/60Hz
● Output voltage: AC 220V Safety terminal output, AC 24V Safety terminal output
● Adjustable power supply: Armature supply: DC 0-220V 5A, excitation source : DC 220V 2A
● Working environment: ambient temperature range -5~40℃
● Capacity: AC <1.5KVA
● Total dimension: 800 x 200 x 200mm
● Motor parameter
● DC separately excited motor
Rated power: Pn=185W Rated voltage: Un=220V
Rated frequency: Fn=50Hz/60hZ Rated current: In=1.25A
Insulation grade: Class E Rated speed:1500r/min
Enclosure protection class: IP44
● Permanent magnet motor
Rated power: Pn=125W Rated voltage: Un=220V
Rated frequency: Fn=50Hz Rated current: In=0.8A
Insulation grade: Class E Rated speed: 1500r/min
Enclosure rating: IP44
Datasheet

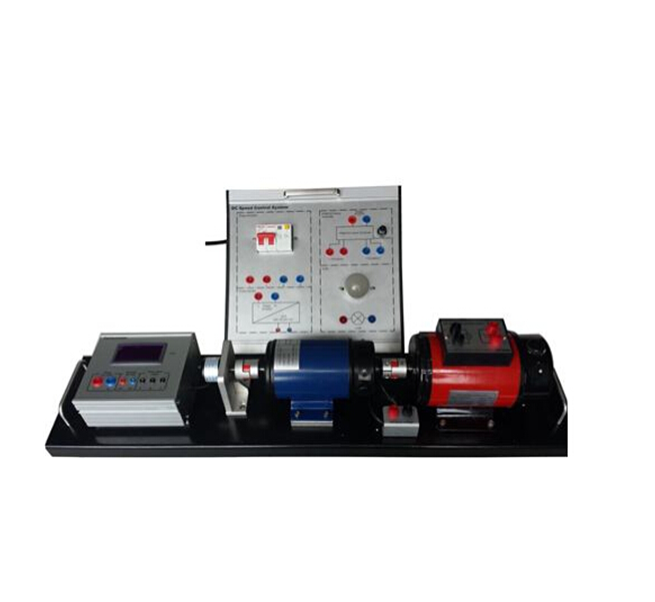

DC motors are composed of permanent magnet DC motor, DC separately excited motor, speed measuring device, power supply, speed controller and display devices etc. Dc motors can eithor be combined to training or effect training seperately.It can be used to do both speed mesuring experiment and experiments of DC motor DC power generation.
