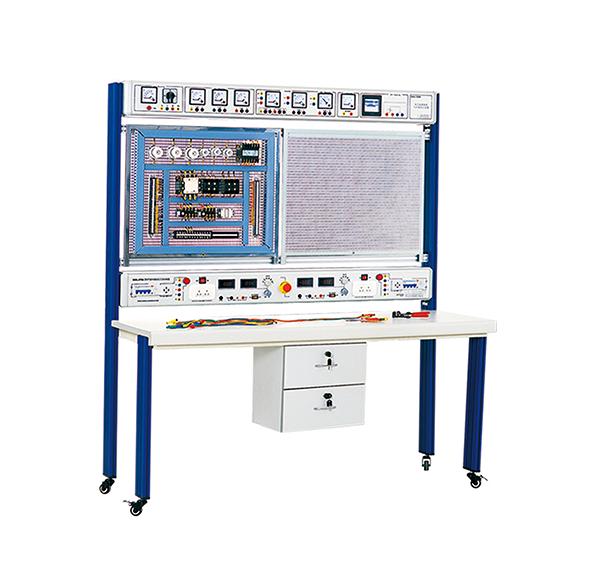

DOLANG DLWD-ETBE12D730M ຊຸດຝຶກອົບຮົມຄວາມຮູ້ດ້ານເຕັກໂນໂລຊີໄຟຟ້າ
■ Technical Parameter
● Total dimension: 1600×800×1850mm
● Size of patch board: 640×730mm (Whole plate folding,stainless steel materials)
● Input power: Three-phase, five-wire AC 380V±10% , 50Hz/60Hz
● Output power: AC 380V safety terminal output, output power indicator AC 220V safety socket output,rocker switch control DC1.25-30V±10% safety terminal output(Including voltage, ammeter indication function).
●Instrumention Measurement:Three-phase voltage measurement, three-phase current measurement, single-phase current measurement, three-phase power measurement, single-phase power measurement, power factor measurement, frequency measurement, single-phase load electricity consumption measurement.
● Capacity: < 1.5KVA
■ Optional
● Teaching resources
● Simulation software
● Electric drag components
● Lighting components
