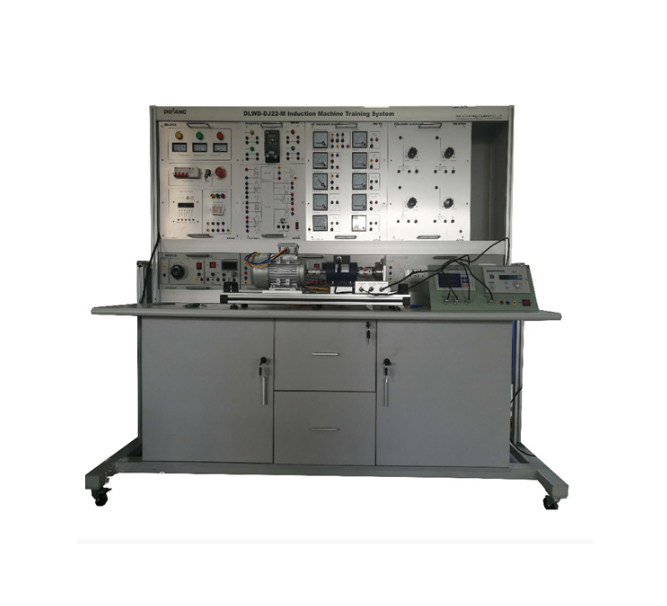

DOLANG DLWD-DJ22-M ລະບົບການຝຶກອົບຮົມເຄື່ອງຈັກ induction
Technical parameter
Input voltage three-phase five-wire: 380V ± 10% 50HZ
Working environment temperature range: -5 ~ 40 ℃
Device capacity : AC power: <1.5KVA DC excitation power supply: <0.5A Armature power supply: <2A
Dimensions L × W × H = 1810x720x1620mm
Specification for workbench
1), Input voltage three-phase five-wire: 380V ± 10% 50HZ
2), Working environment temperature range: -5 ~ 40 ℃
3), Device capacity AC power <1.5KVA
The general power control with leakage protection, when the leakage current up to 30mA, the protection device action.
Training Content
1 Frequency Converter Panel Control Motor Start and Stop
2 External Terminal Control Experiment Based on Frequency Converter
3 Reverse Switch Control Motor Forward and Reverse Experiment
4 Use Star - Delta starter to Star Motor
5 Combination Switch Control Two-speed Motor Experiment
6 Contactor Controlled Motor Self-locking Experiment
7 Contactor Interlocking Motor Forward & Reversing Control Circuit
8 Dual-interlock Three Phase Asynchronous Motor Forward/Reversing Control Circuit
9 Y-△ Start Experiment Controlled by Contactor
10 Y-△ Start Experiment Controlled by Contactor
11 Three-phase Asynchronous Motor Sequence Control
12 Single-phase Capacitor Motor Start Experiment
13 Single Phase Capacitor Motor Forward and Reverse Experiment
14 Single-phase Resistance Motor Forward and Reverse Rotation Experiment
15 Switched Reluctance Motor Speed Control Experiment
16 How to Use Torque Sensor
