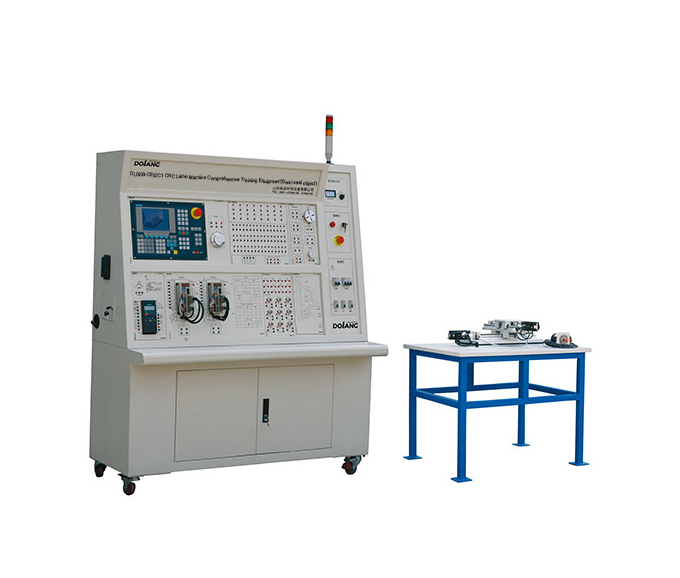

DOLANG DLSKB-C802C1 CNC Lathe ເຄື່ອງອຸປະກອນການຝຶກອົບຮົມທີ່ສົມບູນແບບ

● Total dimension: 1460×602×1700mm

● Input power: three-phase,five-wire AC 380V±10% 50Hz/60Hz

● Output power: AC 220V safety socket output

● Lathe machine parameters:

Workbench moving stroke: X 200mm,Z 250mm

Maximum moving speed of the table: 3000mm/min

Maximum spindle speed: 1400r/min 25W

Lathe machine dimension: 670×450×180mm

● Capacity: < 2KVA

■ Optional (System)

● Siemens system

● Fanuc system

● HCNC

● GSK system

Datasheet

●CNC system adopts Siemens SINUMERIK 802C base line,X-axis,Z-axis are drived by a servo motor,spindle motor is driven by frequency converter.

● This device organically combines the machine's electrical parts with mechanical parts,it consists of CNC system,frequency conversion spindle system,electrical control panels,power control section,servo drives control and machine tool semi-physical simulation model,it displays all the action of the machine tool.

● The device can complete a number of teaching and training like CNC system installation,parameter setting,fault diagnosis.
