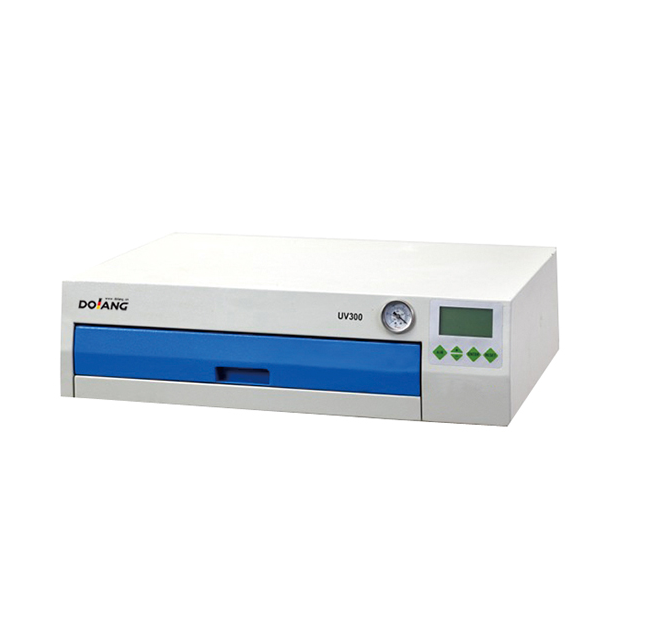

■ Technical Parameter
● Used for exposure of single or double side circuit board which covered by sensitive film. It is
suitable for photochemistry transfer processing of PCB,name board and hollow out.
● Total dimension: 620×240×650mm
● Power supply: 220VAC/50Hz
● Power: 0.2kW
● Minimum analytical line width: 3mil
● Minimum resolve pitch width: 3mil
● Maximum exposure format: 300mm×400mm
● Light source: Import UV-A band UV lamp
● Wave length: 365nm
● Capacity: 120PNL/H
● Vacuum pressure: ≤0.6MPa
● lucalox: Industry-specific transparent films
● Equipment with built-in micro-controller can be programmed
● Device is equipped with LCD interface, beep alarm
● Weight: 15kg
