DOLANG DLJXS-401 ສີ່ລະບົບການຝຶກອົບຮົມຫຸ່ນຍົນຮ່ວມ

● Input power: single-phase, three-wire AC 220V±10% 50Hz/60Hz

● Capacity: ≤ 1.5KVA

● Pneumatic source working pressure: 0.4 MPa ~ 0.6 MPa

● Robot parameters:

Mitsubishi industrial robot RH-6SDH3517C;

Robot maximum action radius: 350mm;

Maximum lift weight: 6KG;

Robot weight: 20KG;

● Total dimension: 1250×900×1550mm

■ Optional

● Computer, computer table

● PLC module

Datasheet

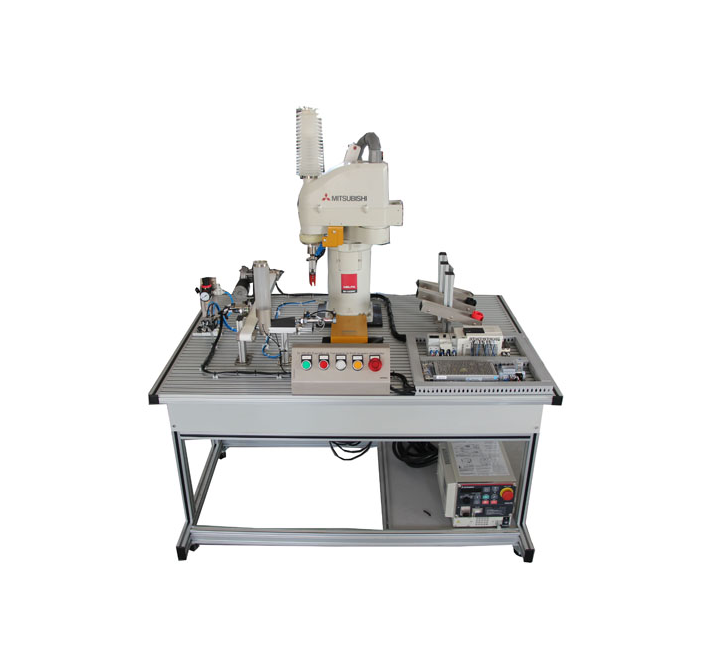

● The four joints robot training system consists of distribution module, transmission module, robot modules, sorting module and control module.

● Distribution module provides three kinds of workpiece with different color and material; Transmission module is composed of DC motor and belt; The robot is Mitsubishi four joint robot for completing pickup or put down the workpieces, according to the test result, put the workpiece to different place.
