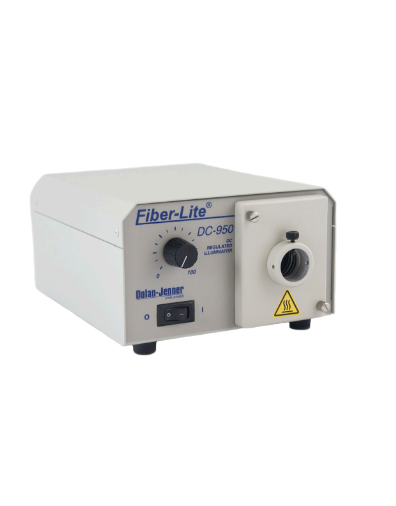

Dolan-Jenner DC-950 ໄຟເບີ Optic Illuminator
Performance Data
Lamp: EKE 150 Watt, 21 V, quartz halogen
Lamp Output: 1750 Lumens, at fiber optic intersection plane
Electrical Data
Input: 100-240 VAC 50/60 Hz Univ. AC
Fuse: 3 AMP, 250V, Slo-Blow
Physical Description
Dimension: 7.25” x 9.50” x 4.69”
Weight: 11.5 lbs.
Intensity Control: Solid State 0 - 100%
Lighting Properties
Lamp Life: 200 hrs. at full intensity / up to 10,000 hrs. at lower levels
Color Temp:. 3250o Kelvin at max. intensity
Fiber Optic: Interface DC950H - 1.0 in. dia., DC950HB- 15.0 mm. dia.
Light Output Regulation: ± 0.5% or better
Output Ripple: 0.4% or better
Remote Intensity Control: 0-5 VDC analog, optional 8-bit digital, see operating manual for details
Replacement Lamp Socket: (Quick Disconnect) 68600902770
